Rod Wrapping (Not What You Think)

6 Posts
3 Users
6 Reactions
165 Views
triple_illusion
(@triple_illusion)
Slot Fish
Joined: 4 years ago
Posts: 139
Topic starter

I find it so annoying that JDM rods do not come with hook hangers, and I am not overly fond of the Fuji hook keepers that we all resort to adding to our sticks. I have made do with these over the years, but I always felt there had to be a better option. What's worse, is that the rod itself becomes subject to all kinds of hook rash. I mostly accepted this as the reality of real world usage of my tackle, but deep down I was always bothered by this.

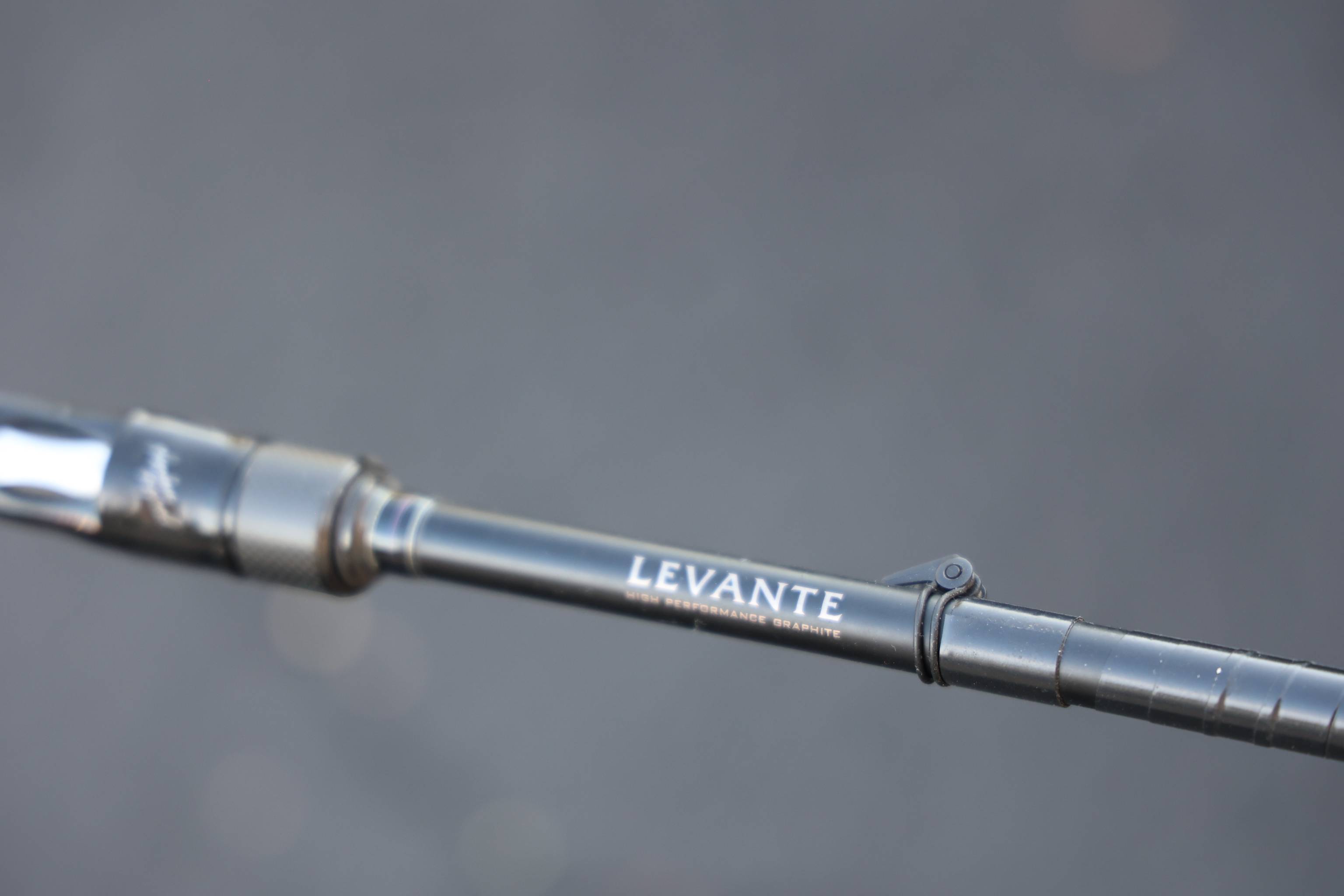

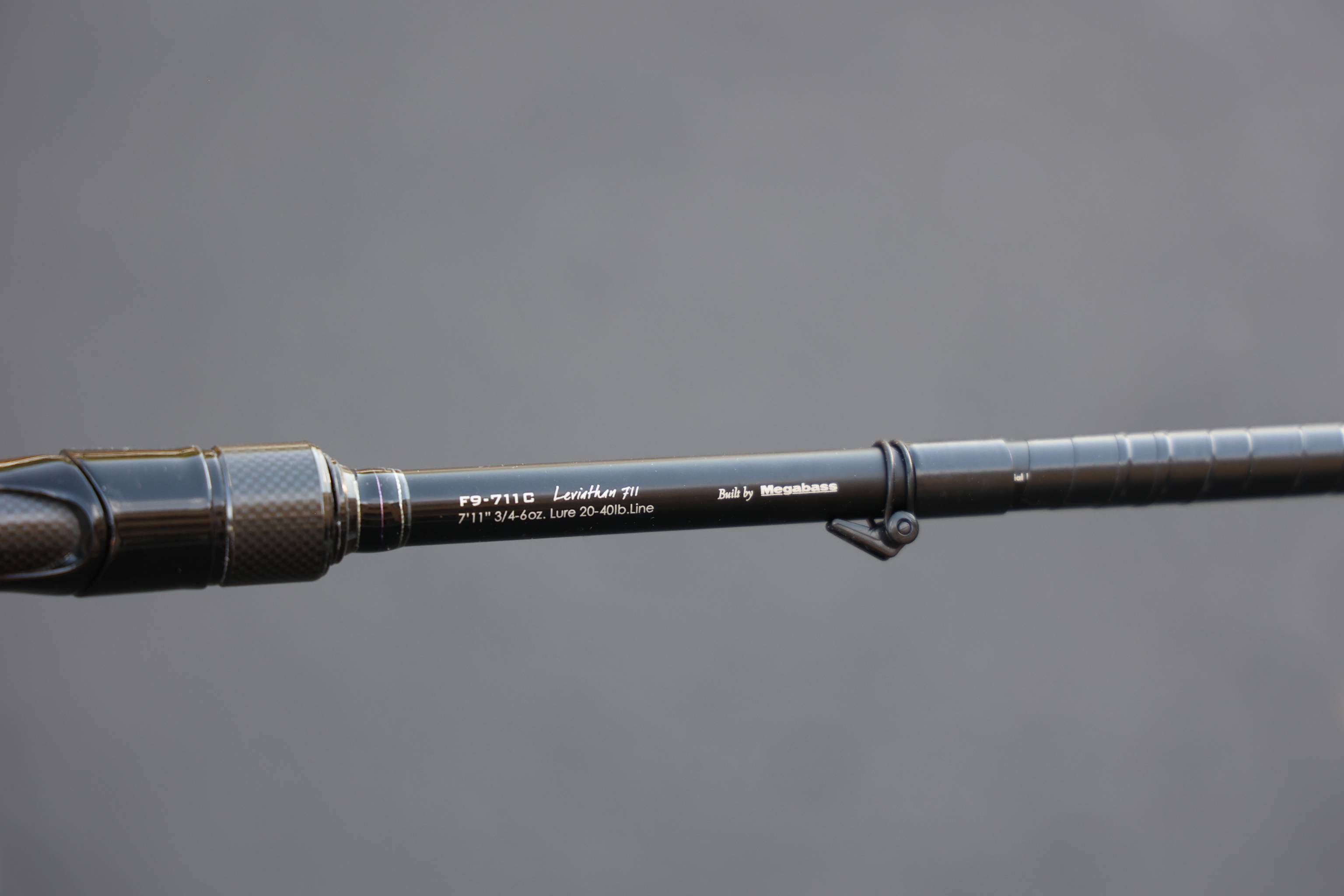

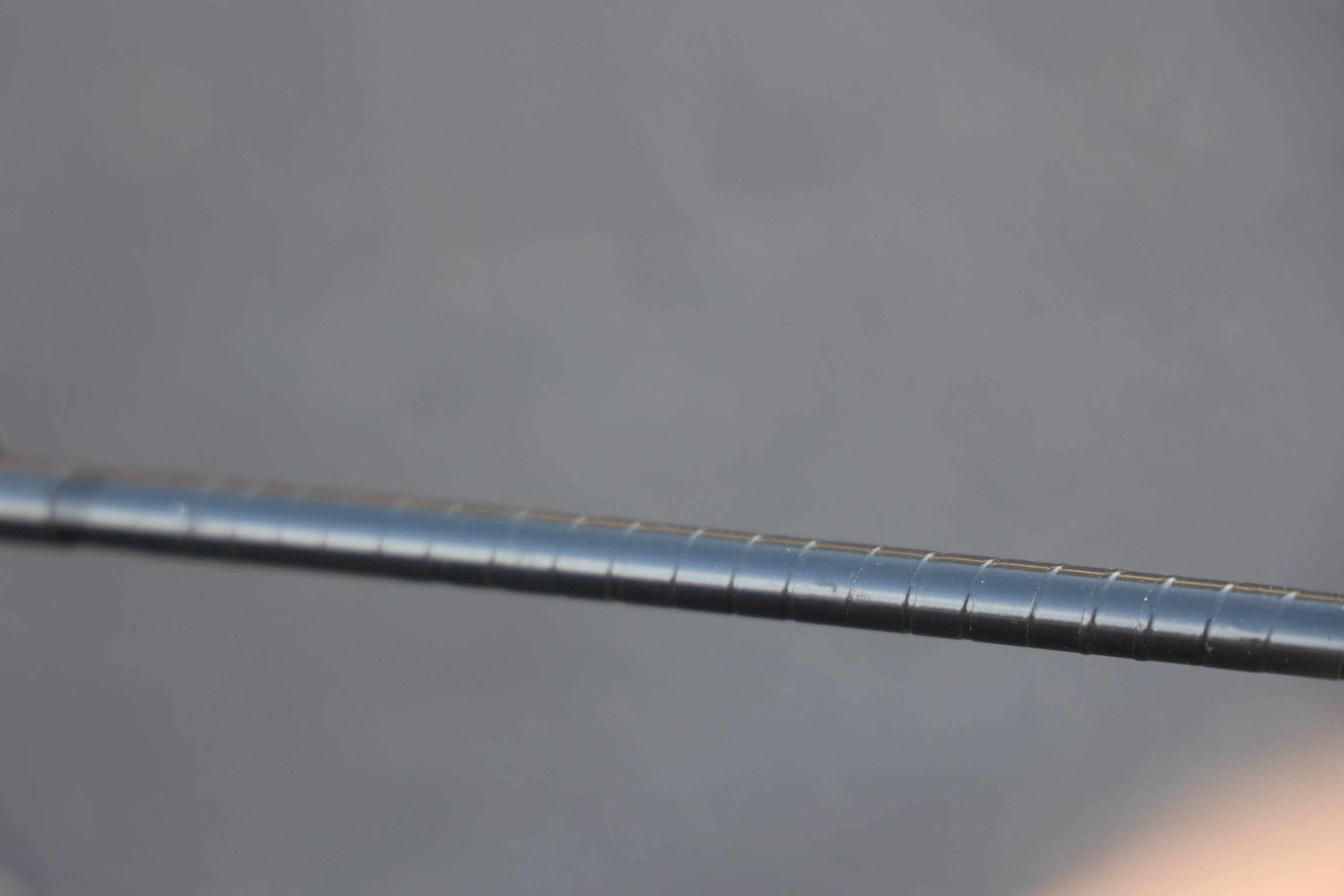

So, a few years back, I decided to try wrapping electrical tape on my rods to see how well it would protect the blank from structural damage, as well as to test how good it was at keeping scratches from marring the graphics:

0W4A5609
0W4A5610

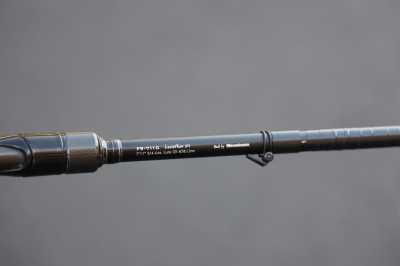

0W4A5611

The concept was effective. However, there are two main drawbacks: the electrical tape's adhesive tends to work its way around and makes things feel a bit tacky, and it also covers up the rod's graphics.

So I got to thinking, what if there was such a thing as clear electrical tape?

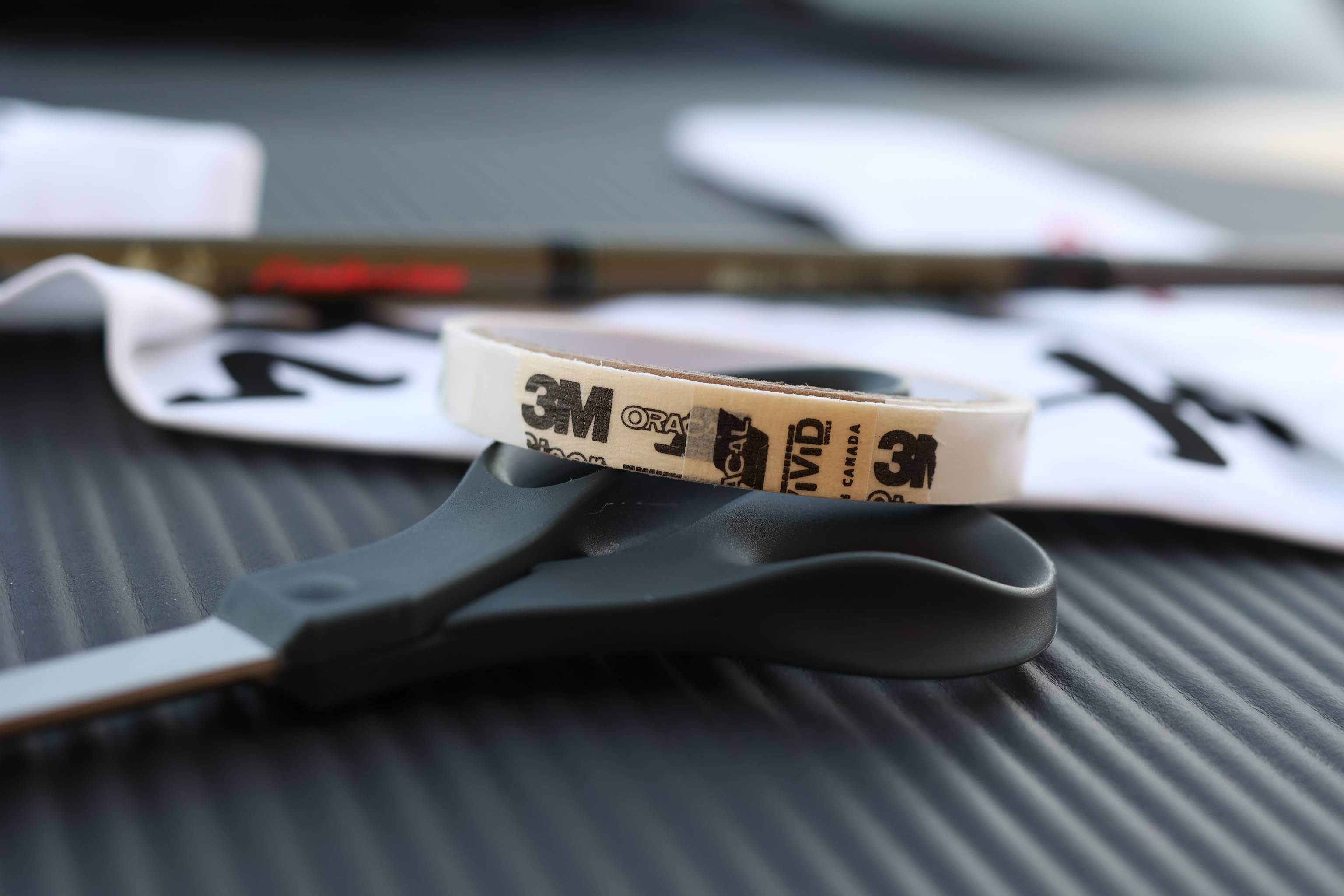

Well, I searched online and there is no such product. Not quite. But, to my delight, I came across a comparable product made by 3M. They market it as paint protection tape, and sure enough, it has the same flexibility as electrical tape, but comes in clear vinyl just as I had hoped for.

0W4A4661

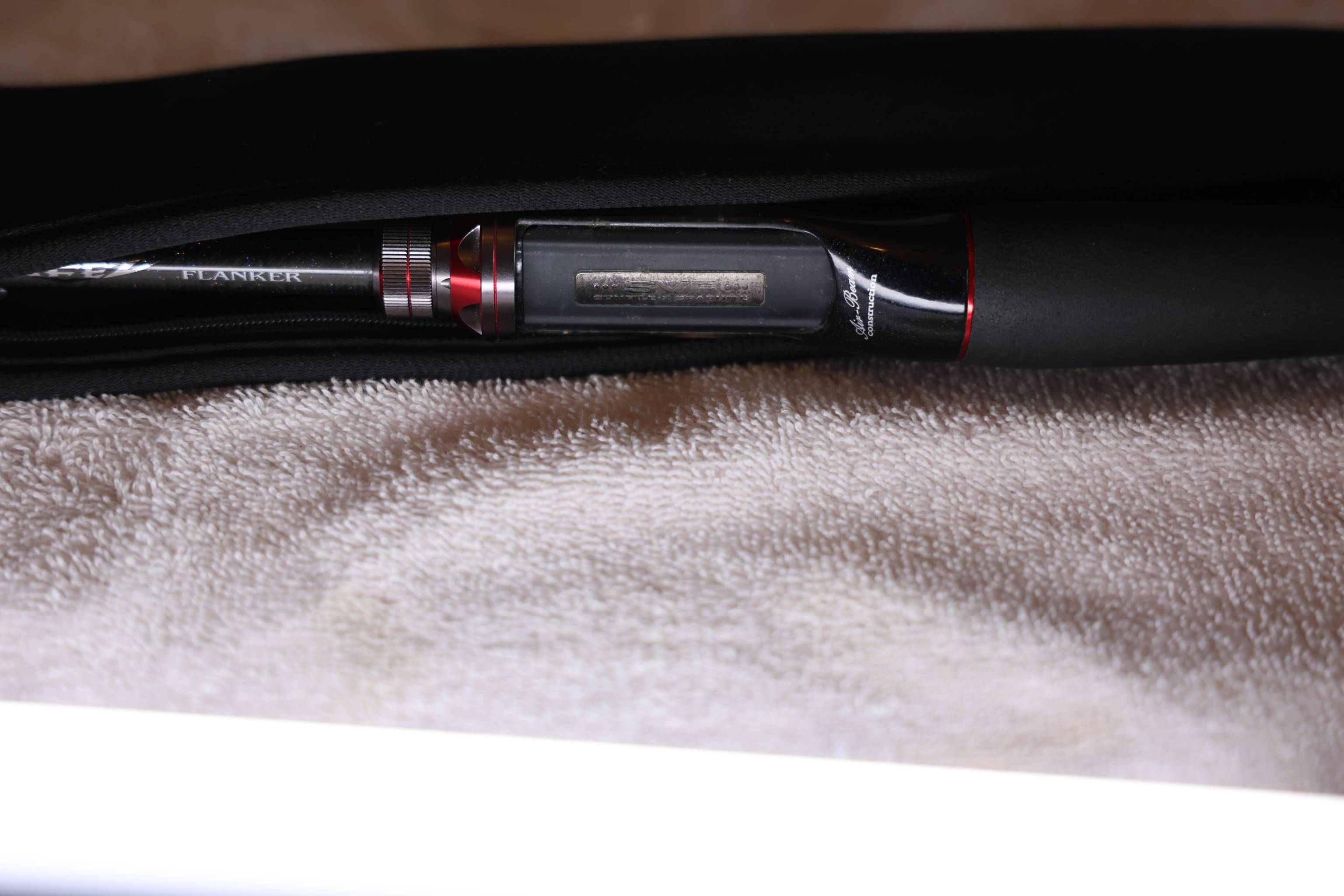

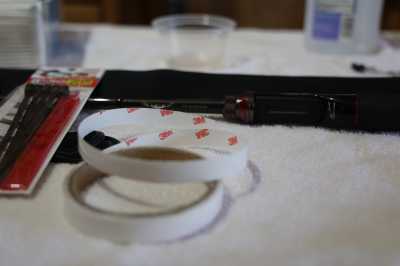

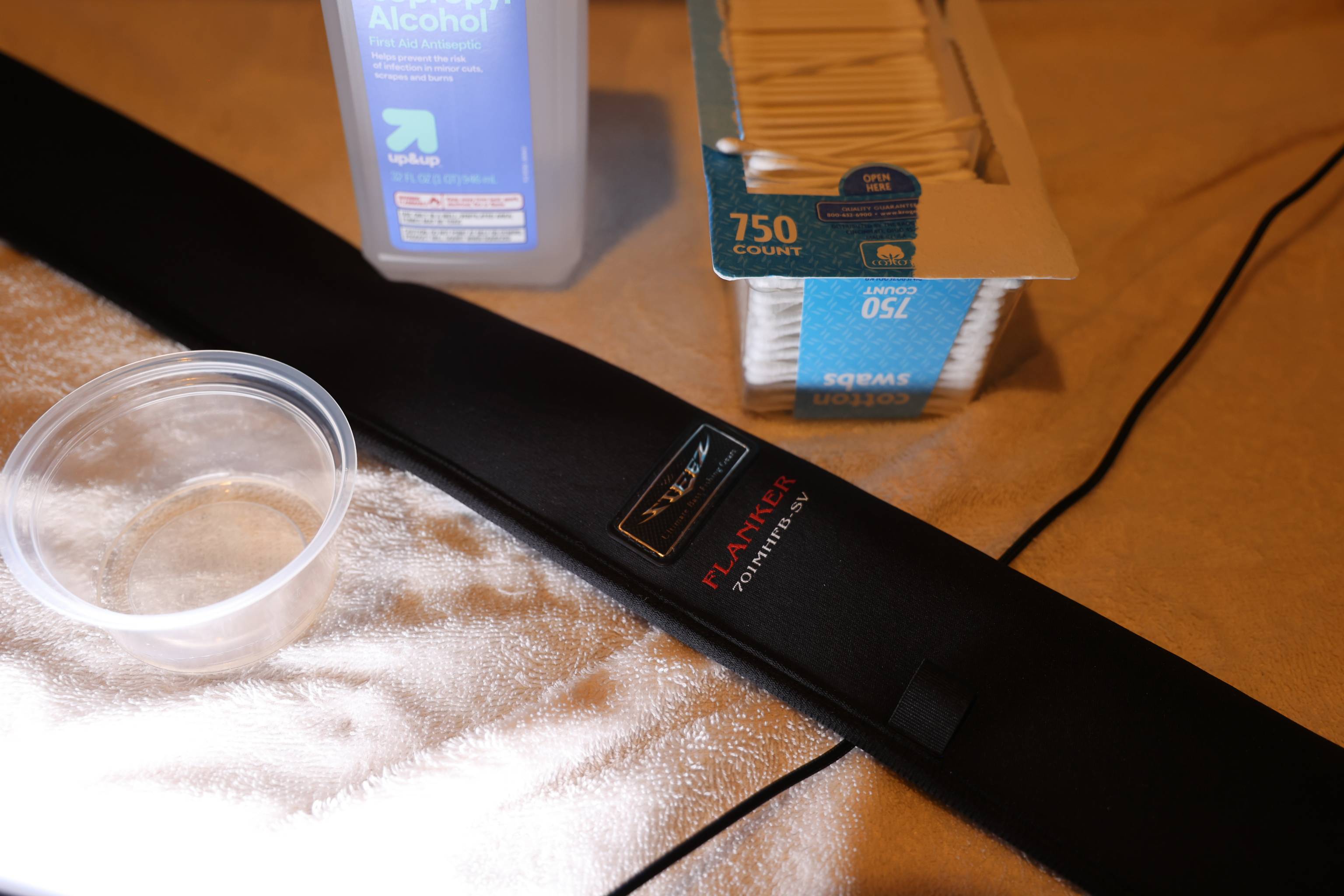

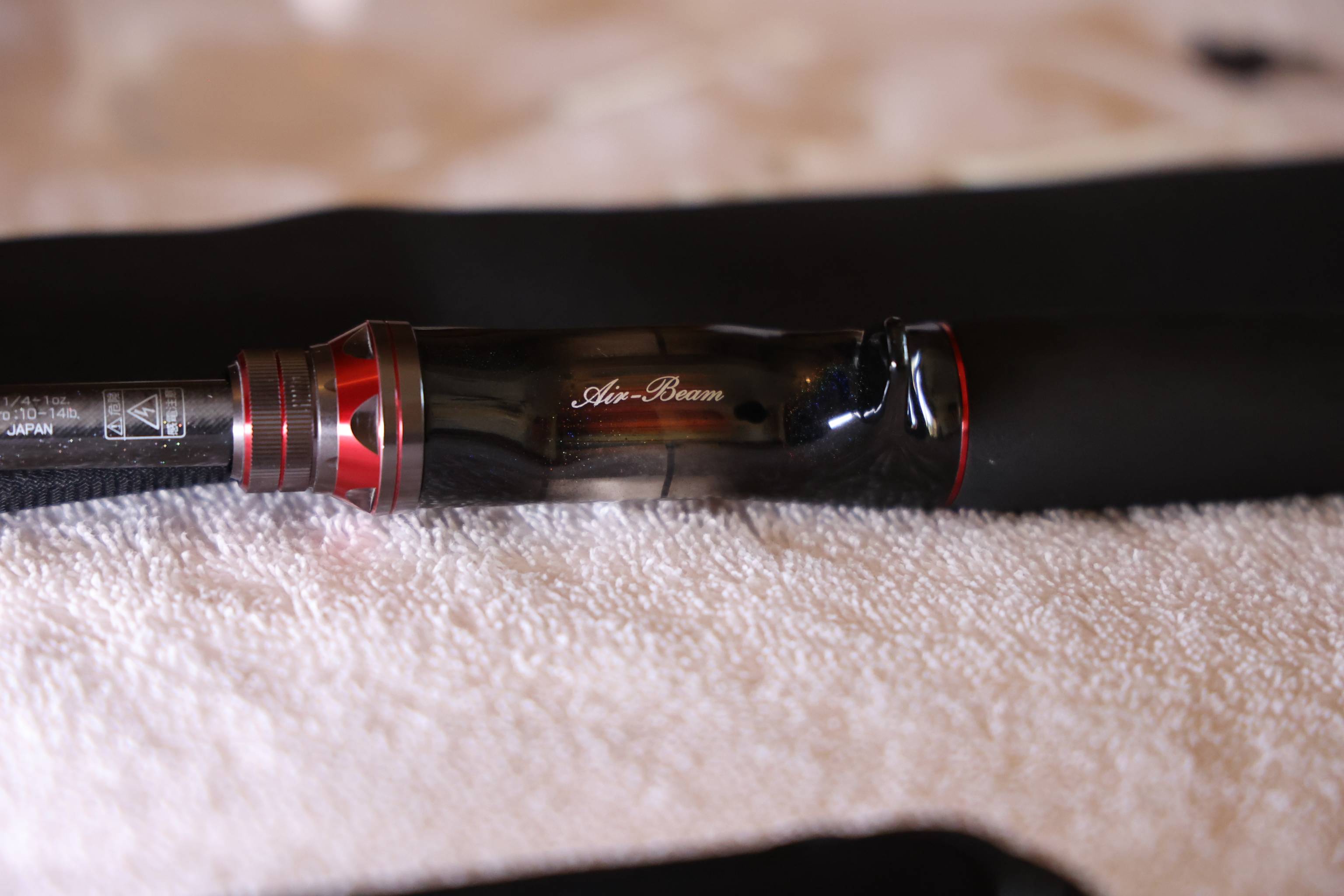

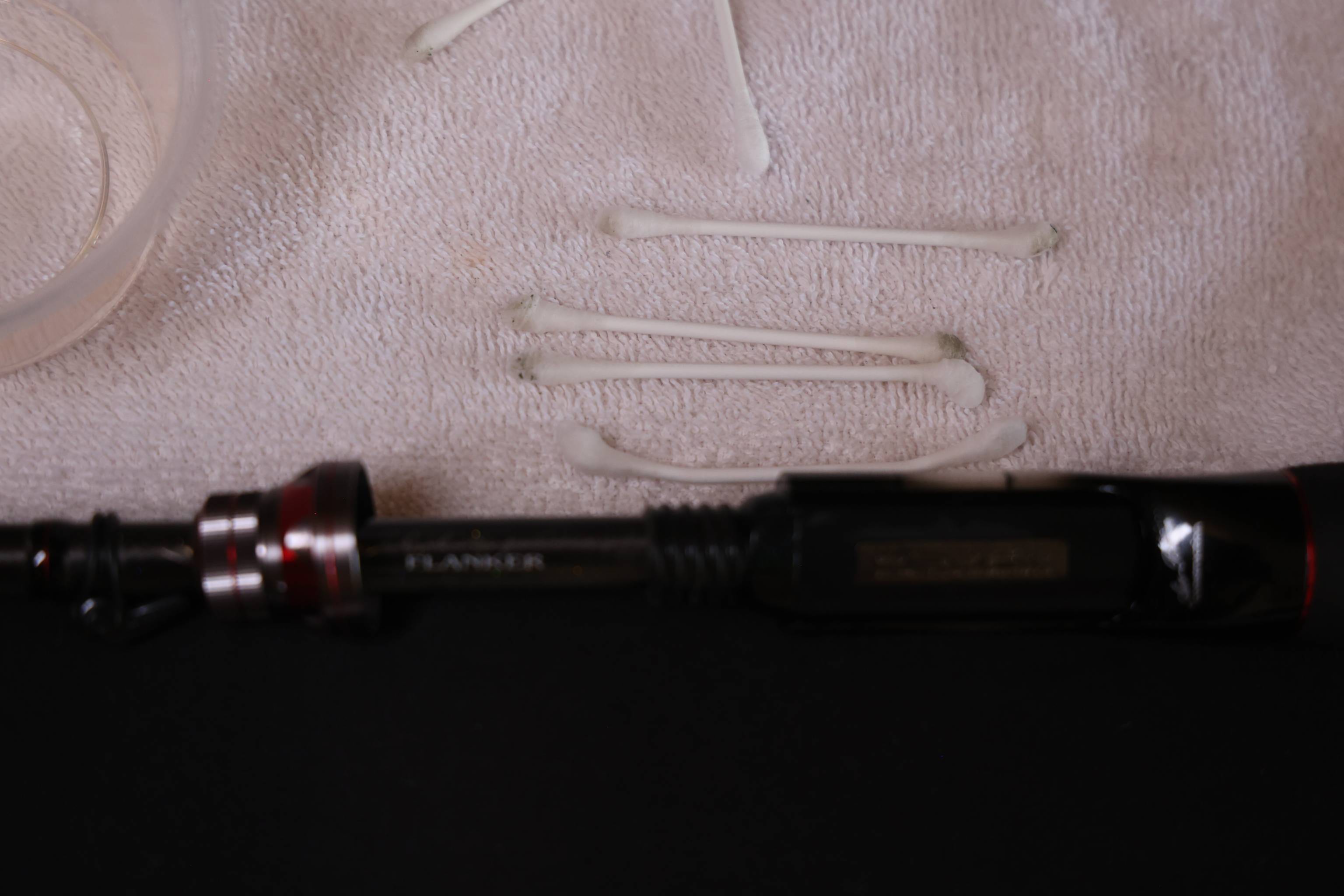

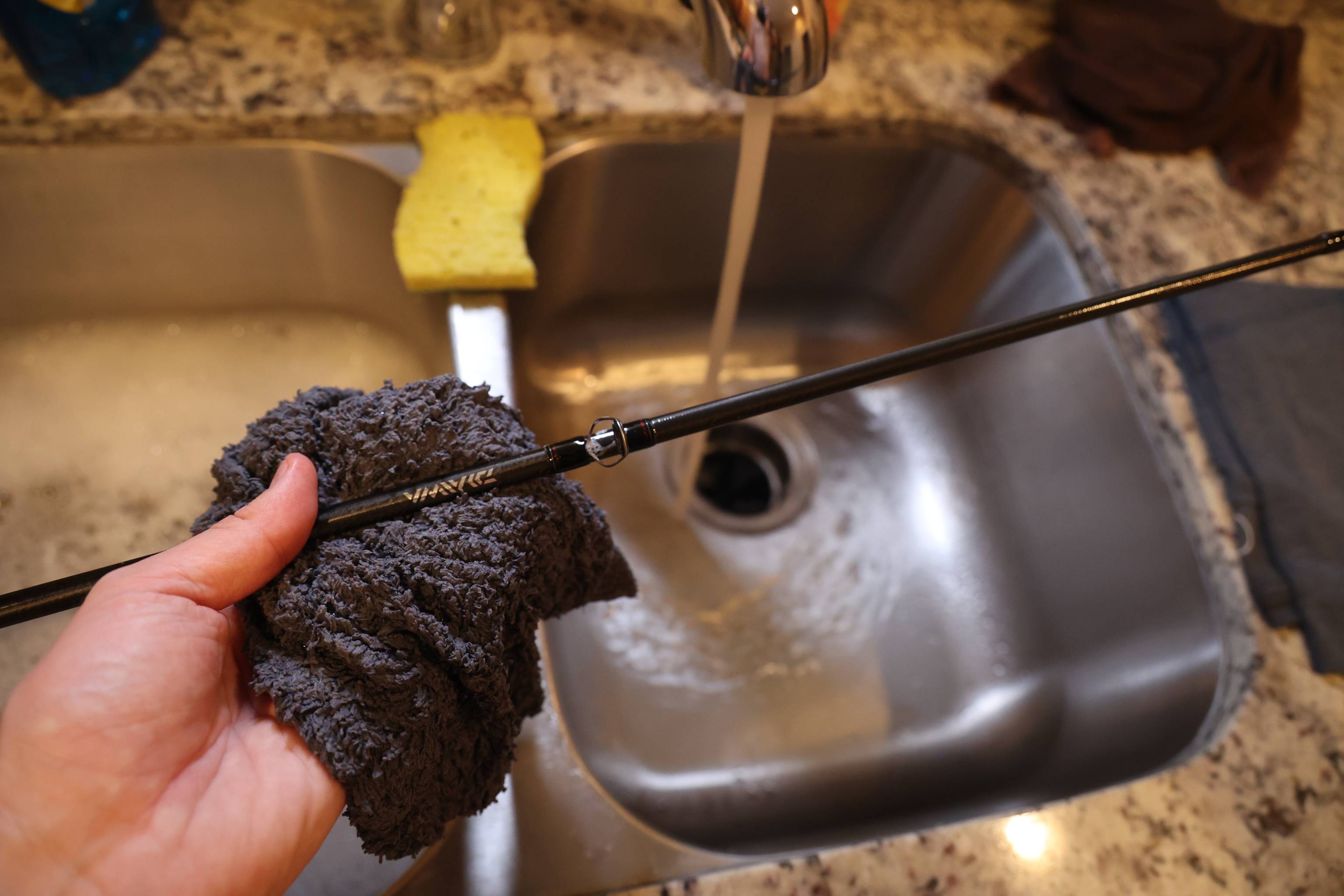

I decided to give my Steez rod a cleaning to prepare it for the upgrades. Here is a look at the process...

0W4A5567
0W4A5569
0W4A5576
0W4A5581
0W4A5582
0W4A5584

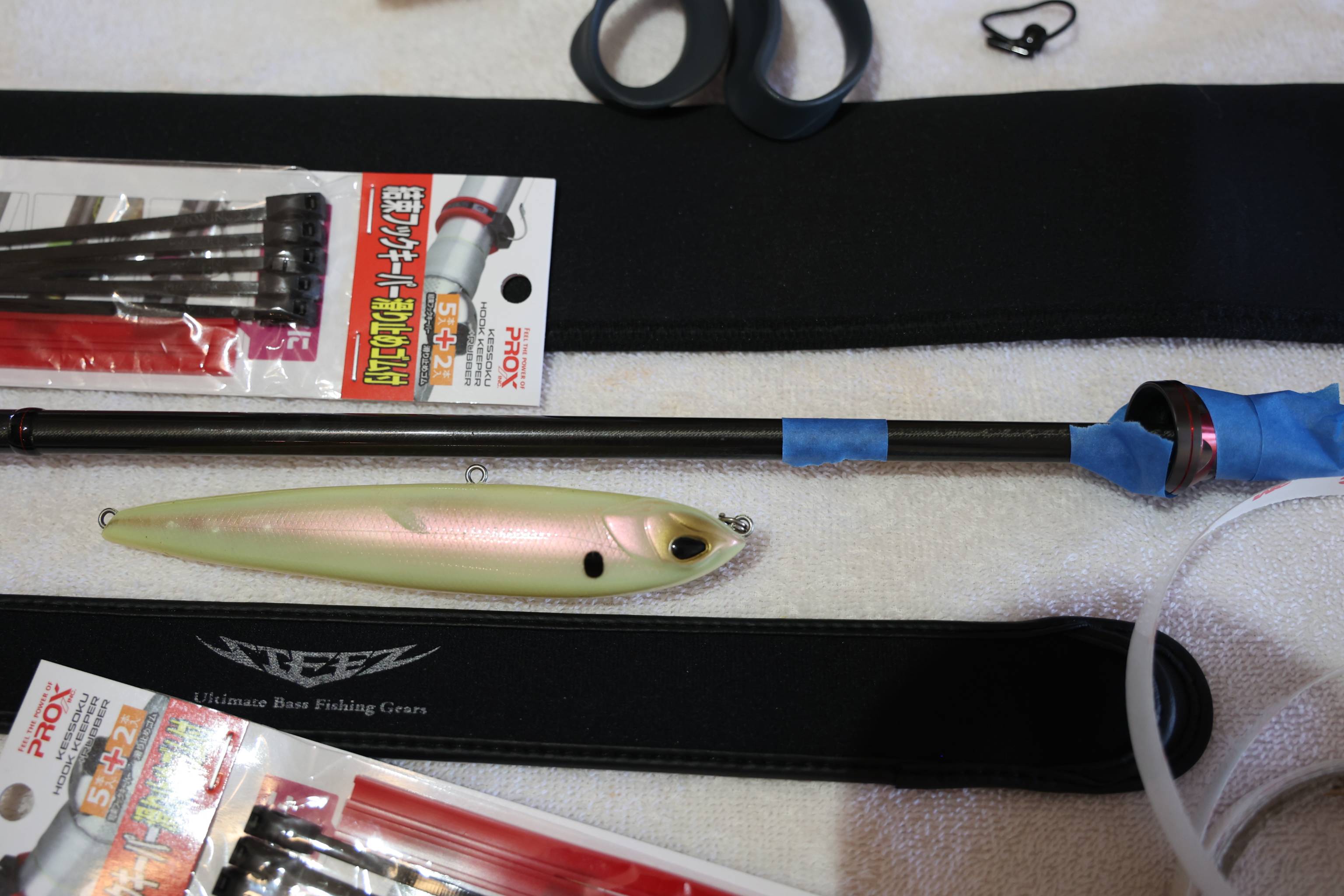

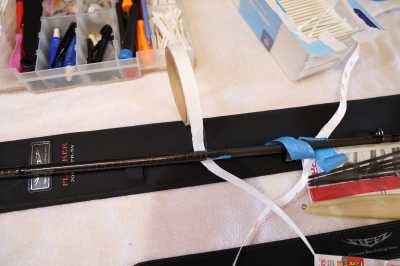

Masking tape helped measure out the portion of the rod to be covered, and also kept the locknut out of the way...

0W4A5586
0W4A5587

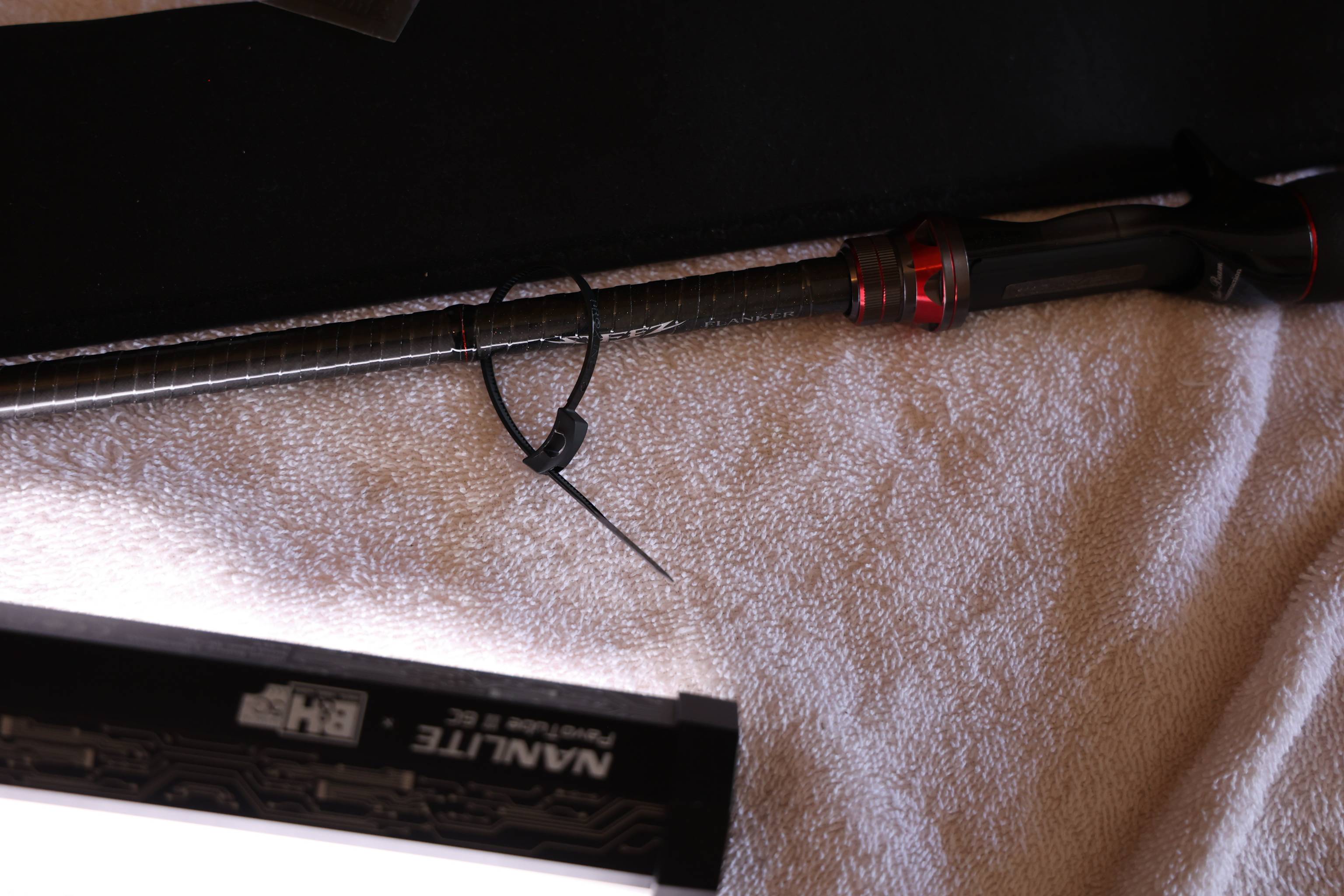

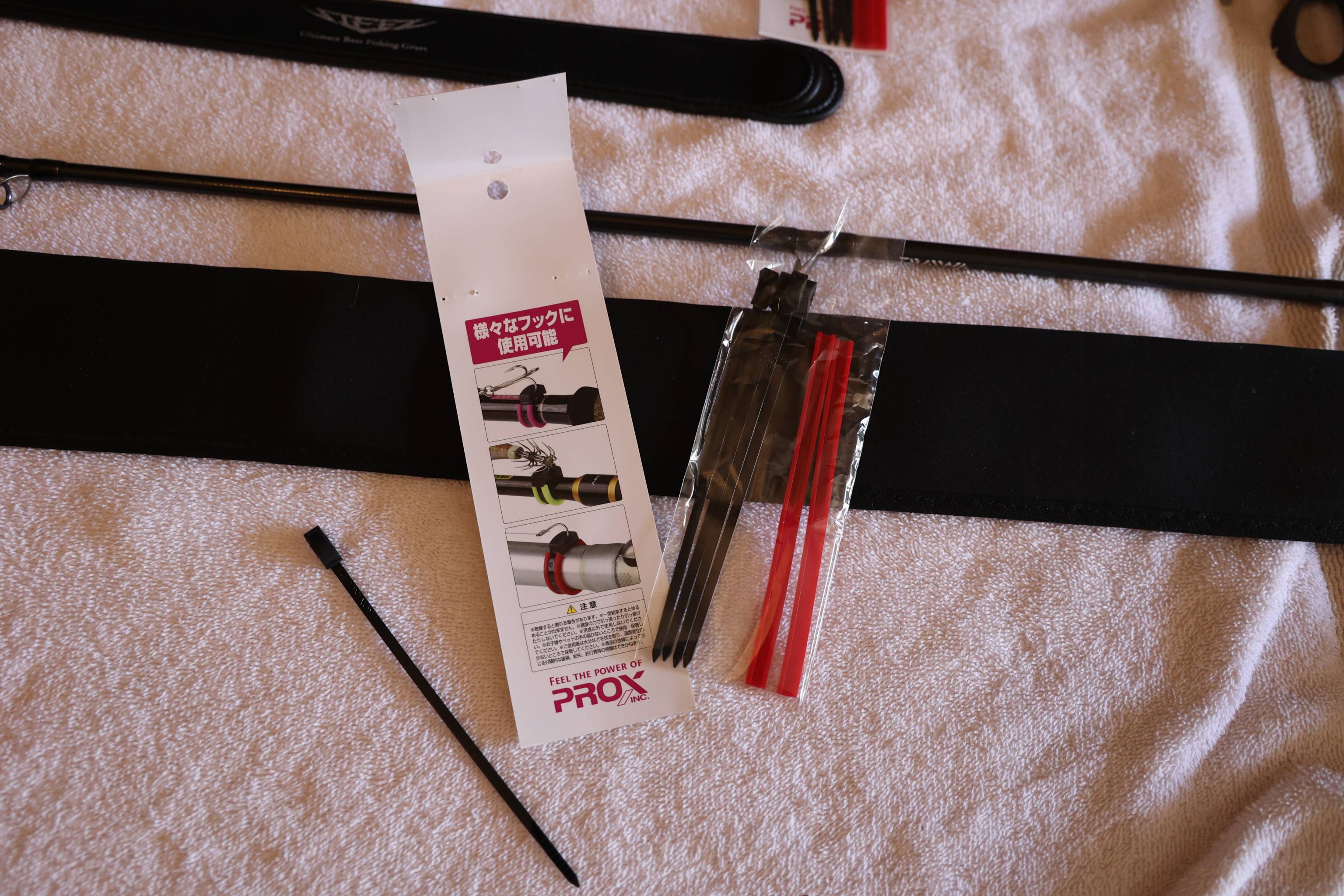

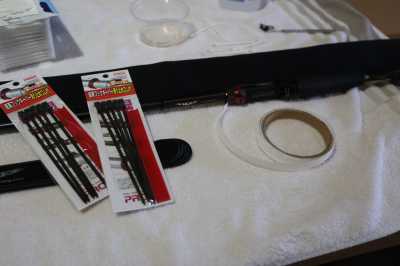

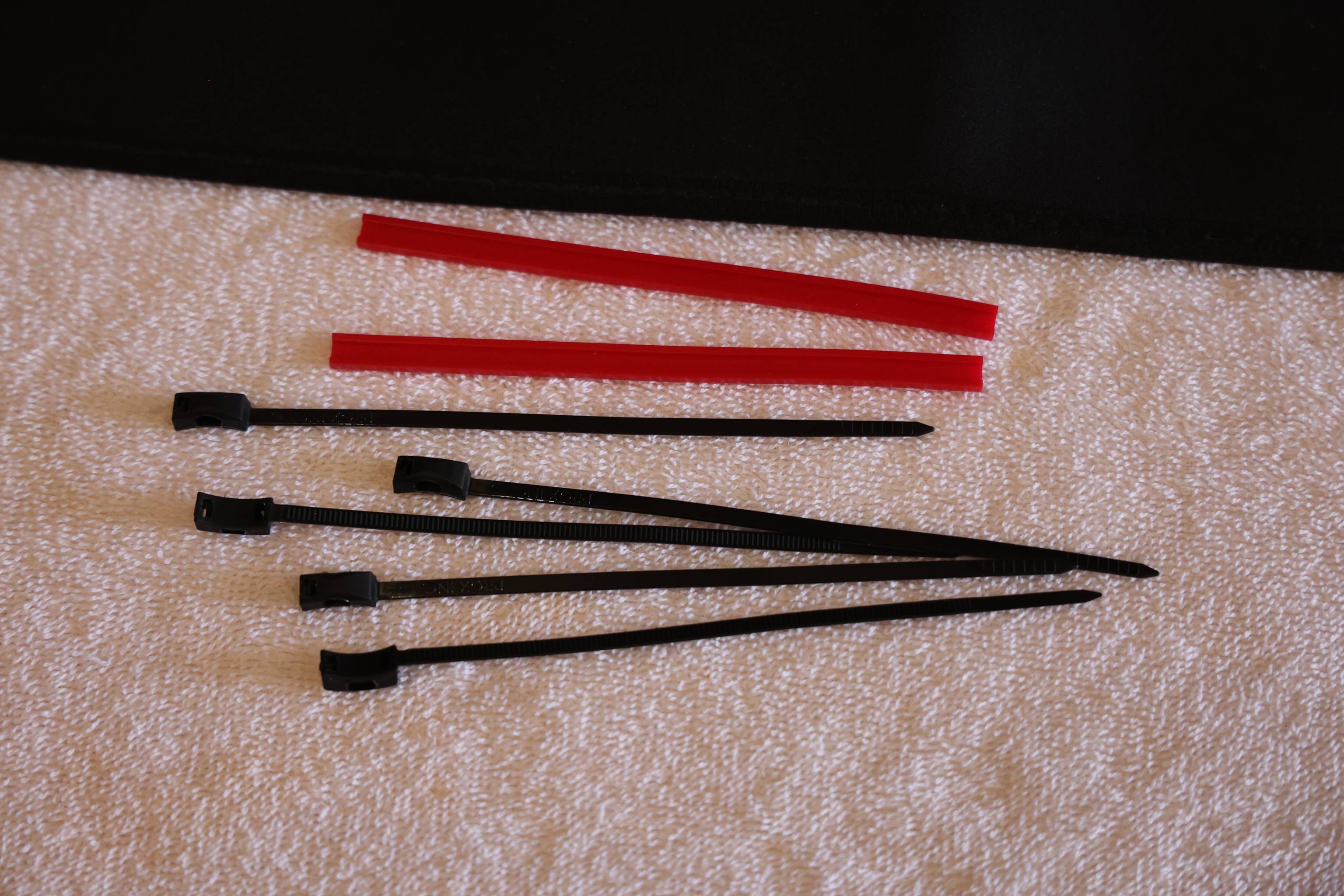

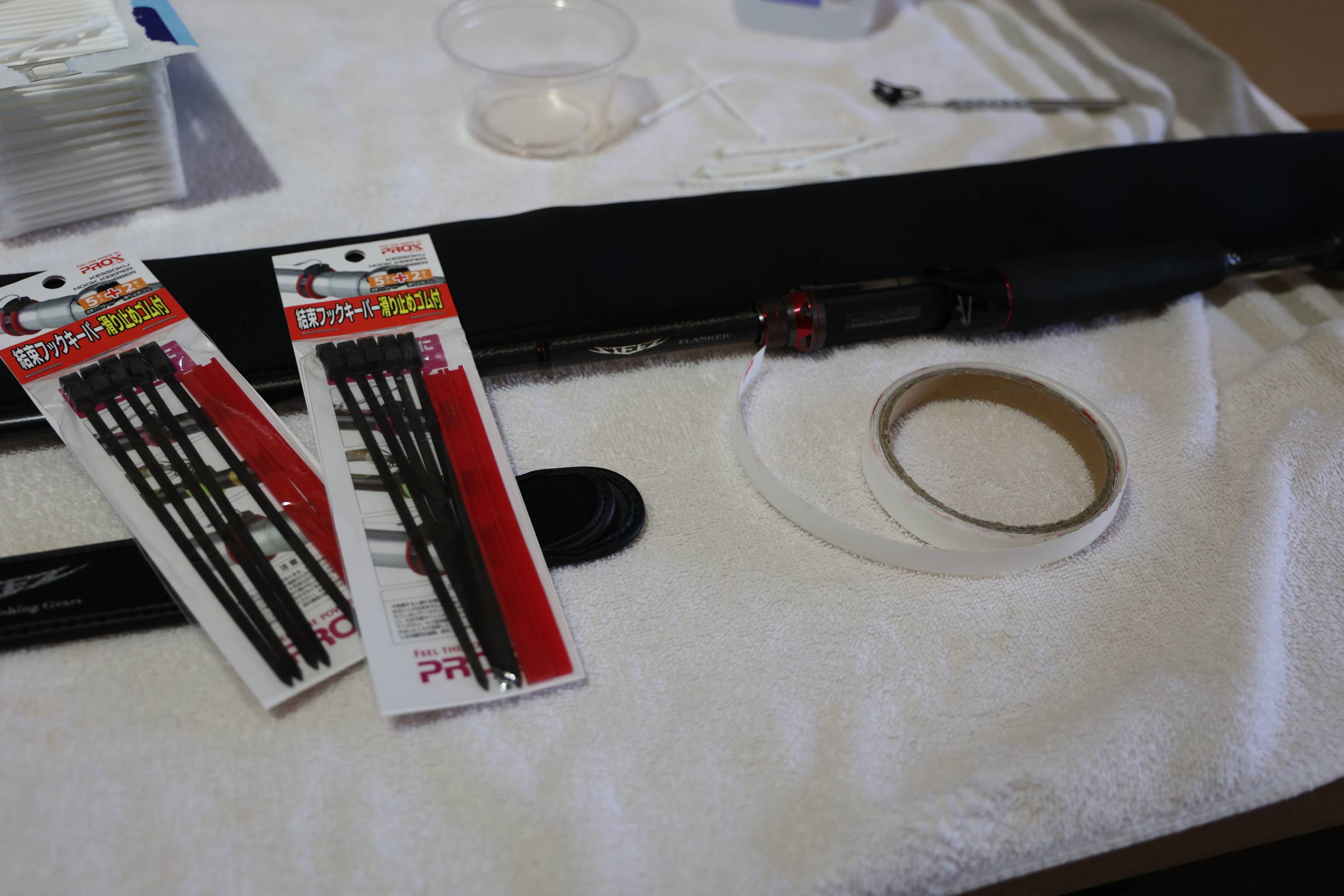

With the blank protection achieved, the only problem left to solve was the need for a better hook keeper. Thankfully, I learned of the Pro-X zip tie hook keepers, and these did it for me. They cinch down really tight on the rod blank, and do not have to be flipped into the open/closed position constantly. I was finally able to achieve the functionality I needed on my JDM sticks.

0W4A5583
0W4A5589
0W4A5588
0W4A5590

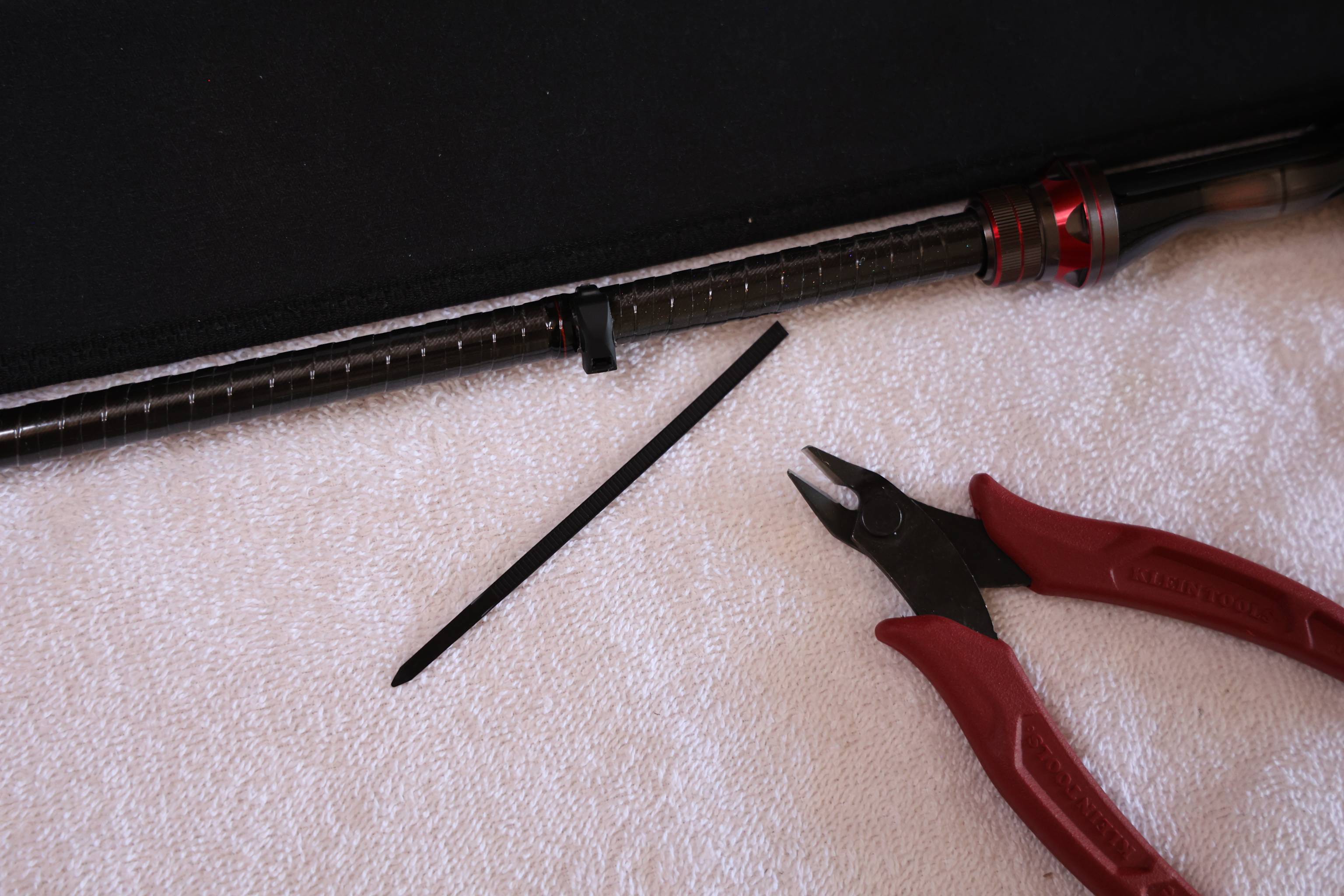

It is critical that these be cinched super tight. I also have a pair of cutters made specifically to cut zip ties without leaving a sharp edge:

0W4A5593

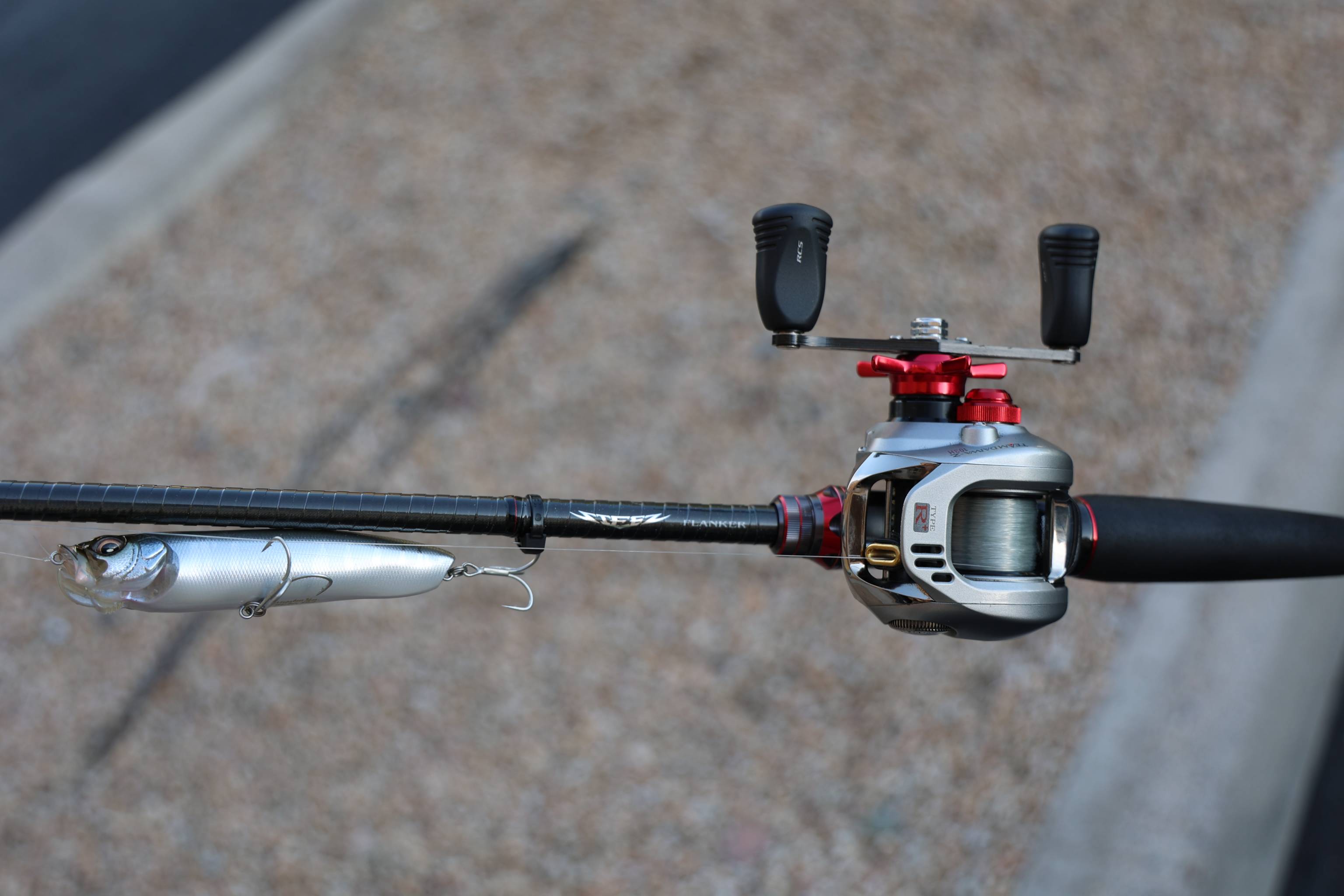

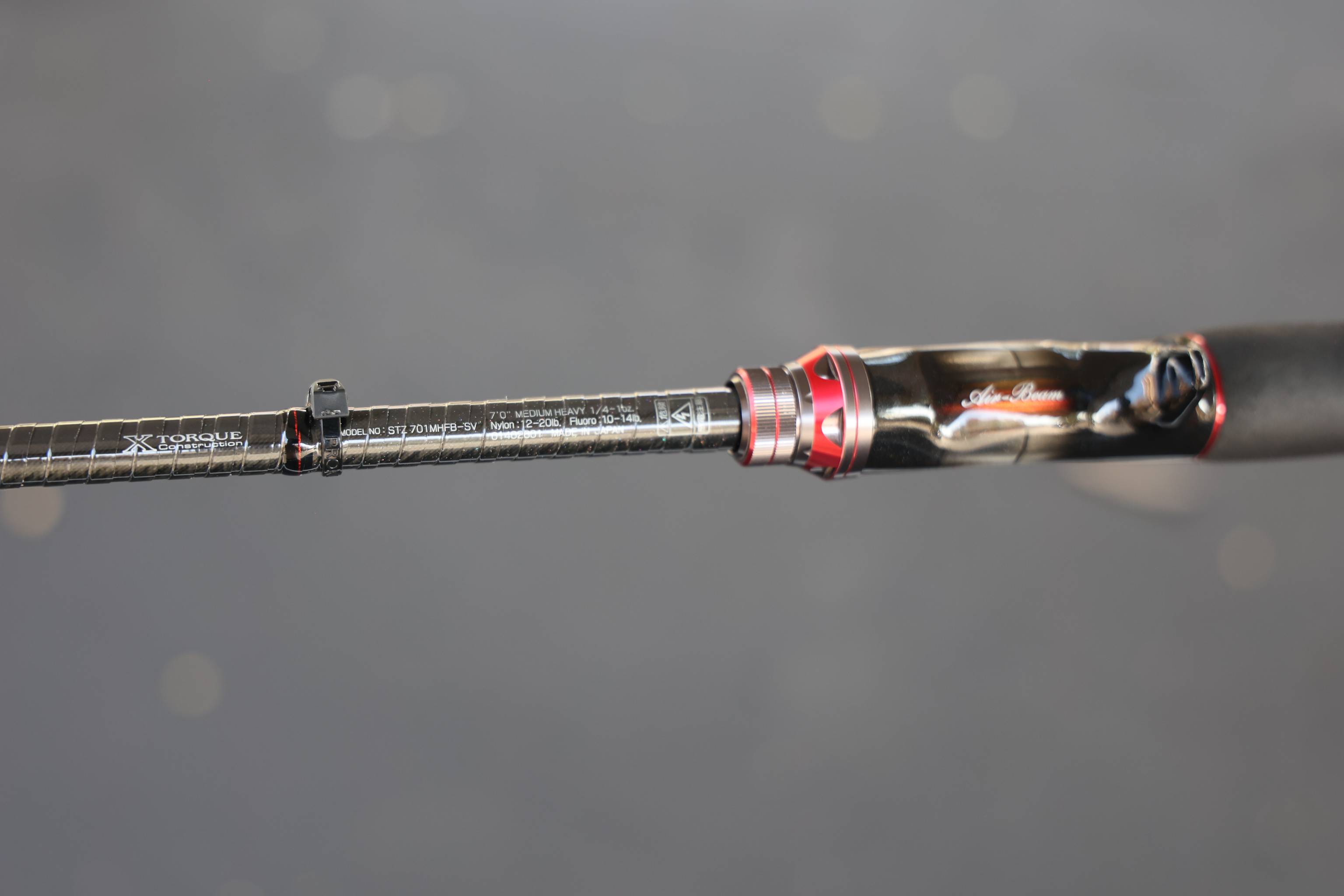

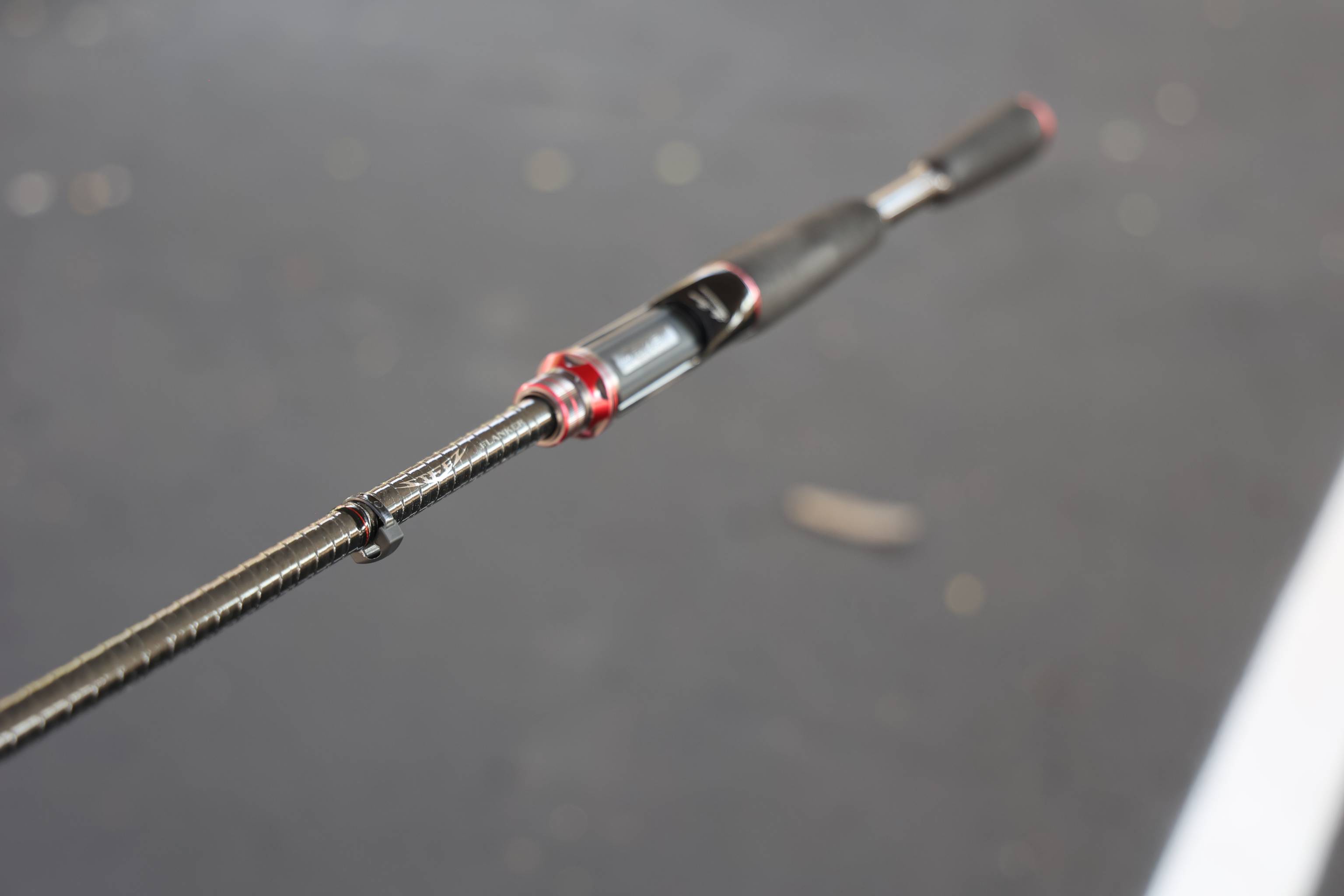

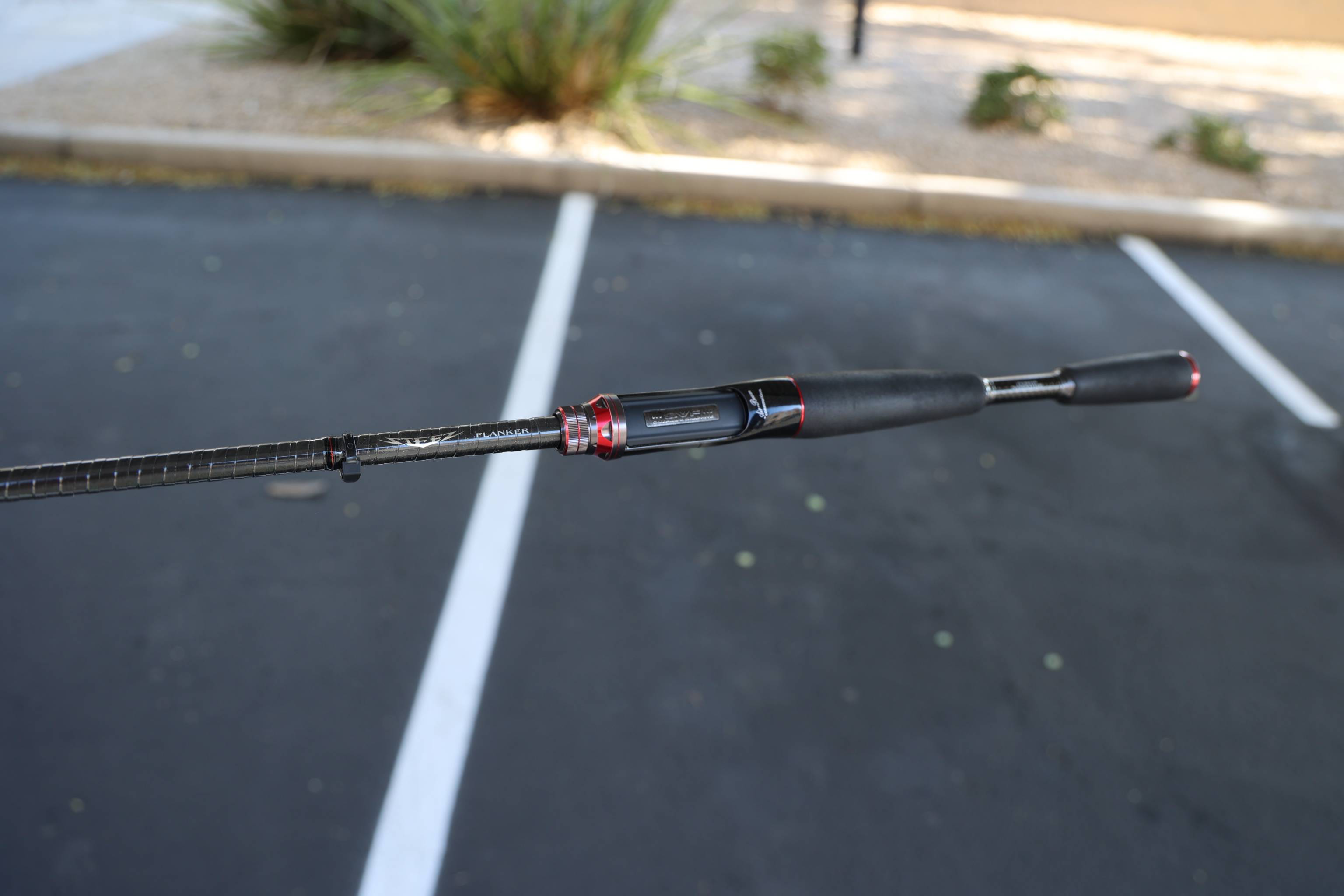

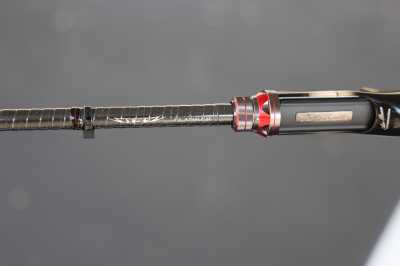

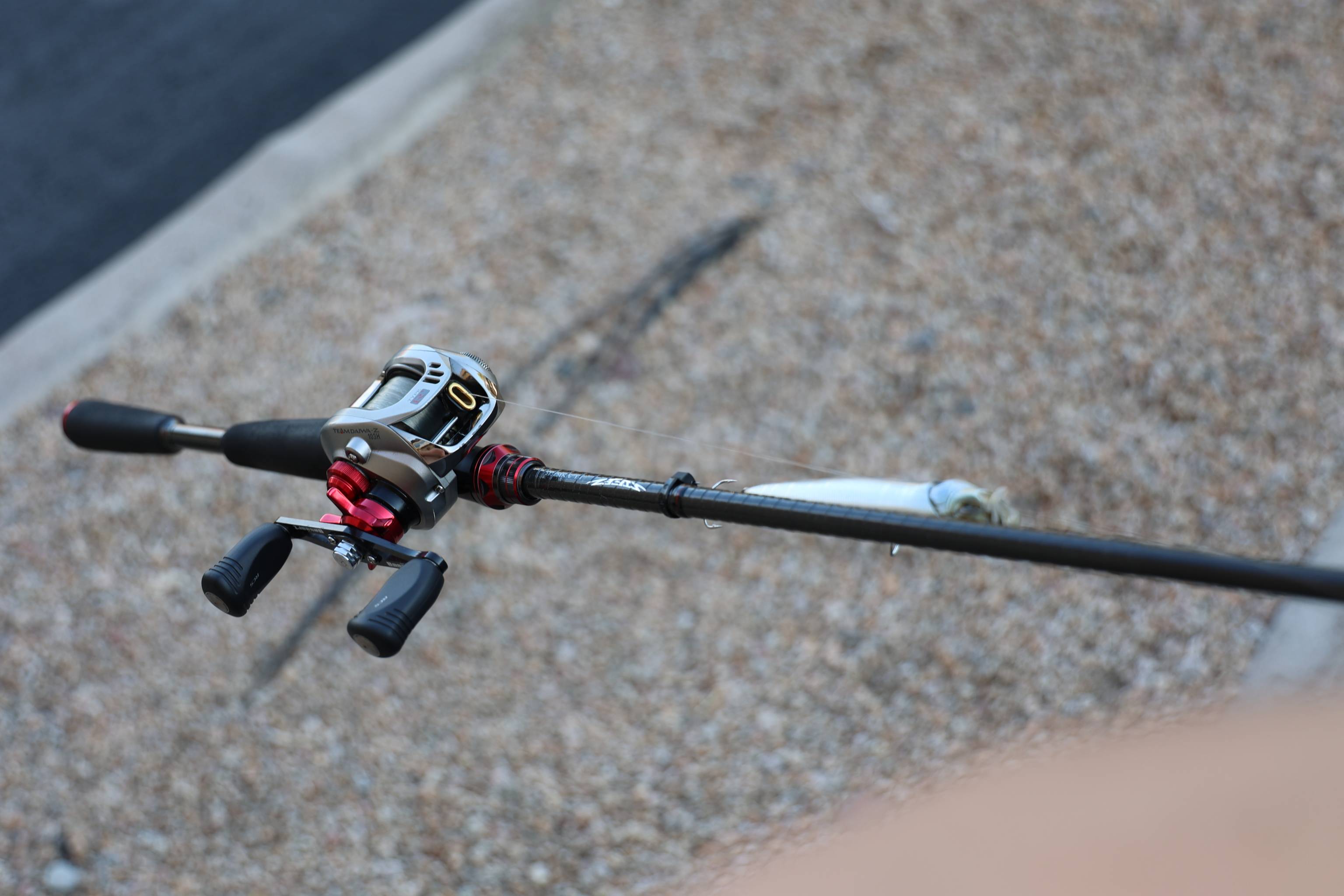

Here is the end result...

0W4A5594

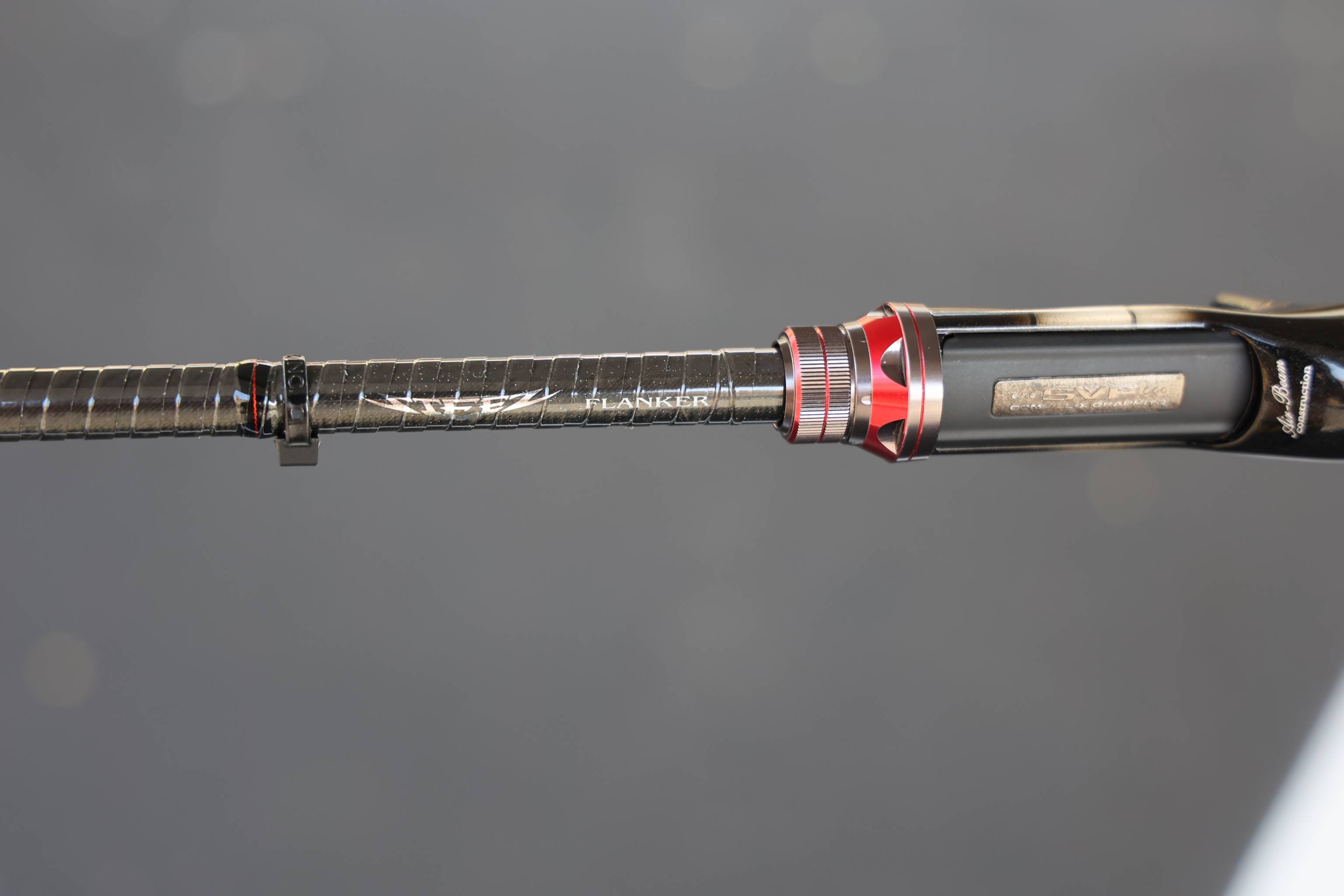

0W4A5597

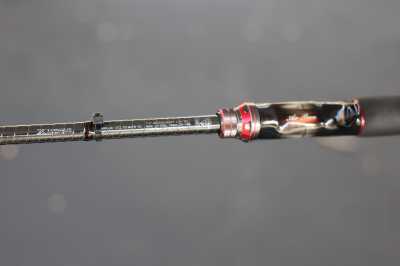

0W4A5595
0W4A5598
0W4A5603
0W4A5604

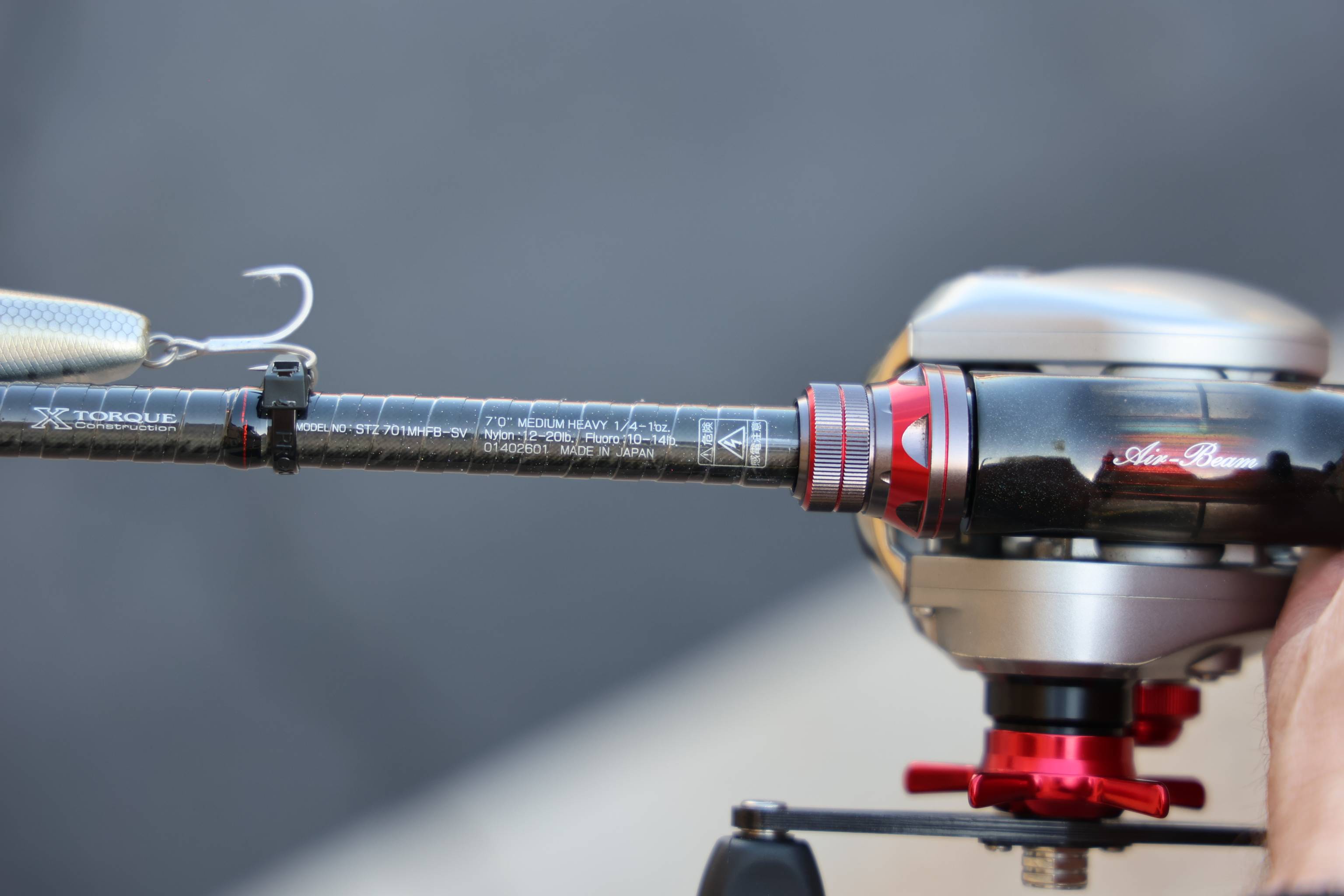

0W4A5605

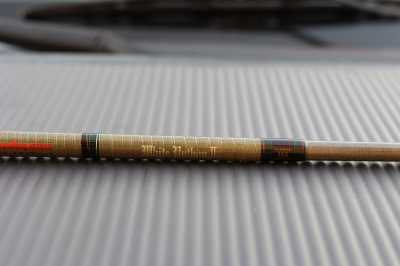

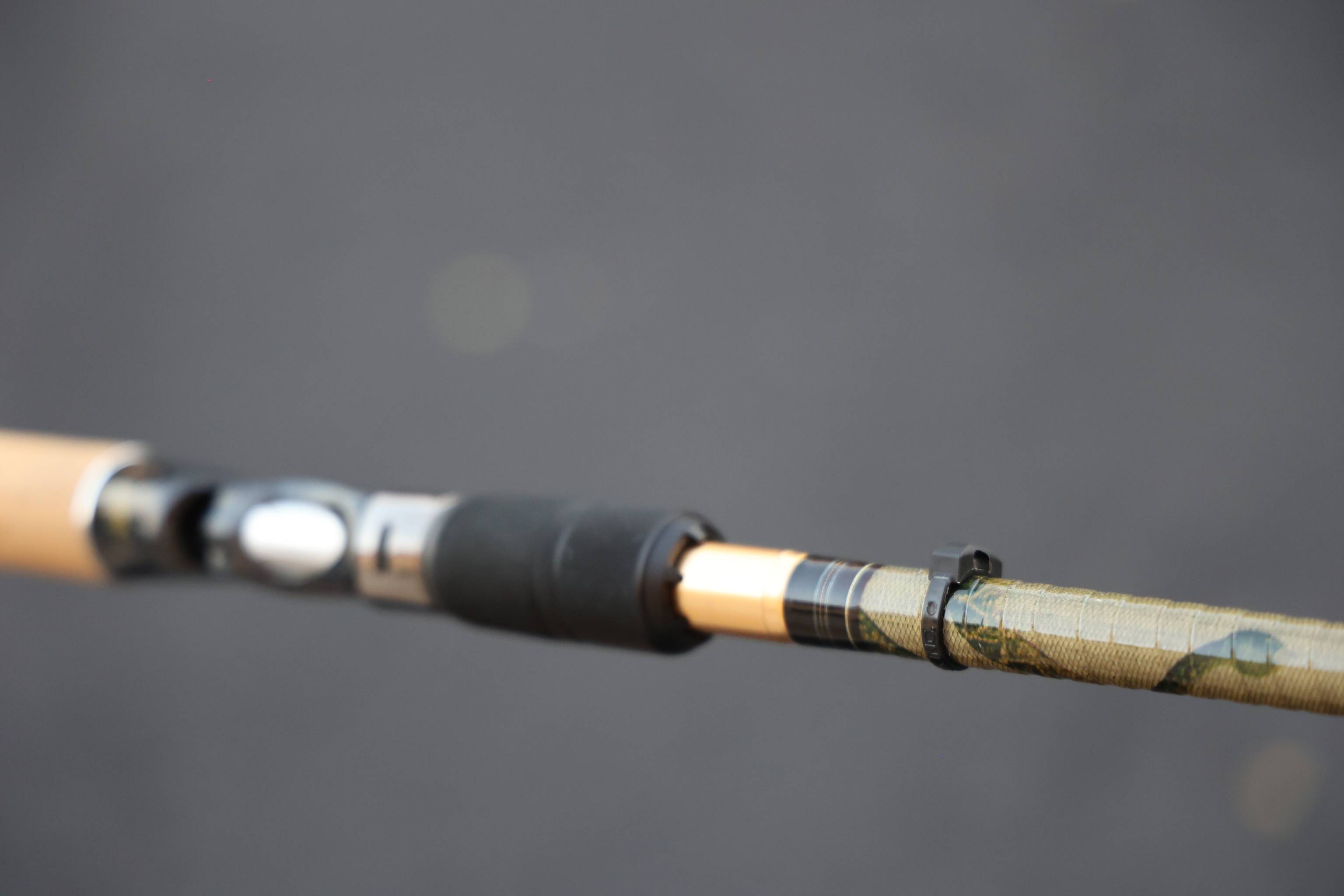

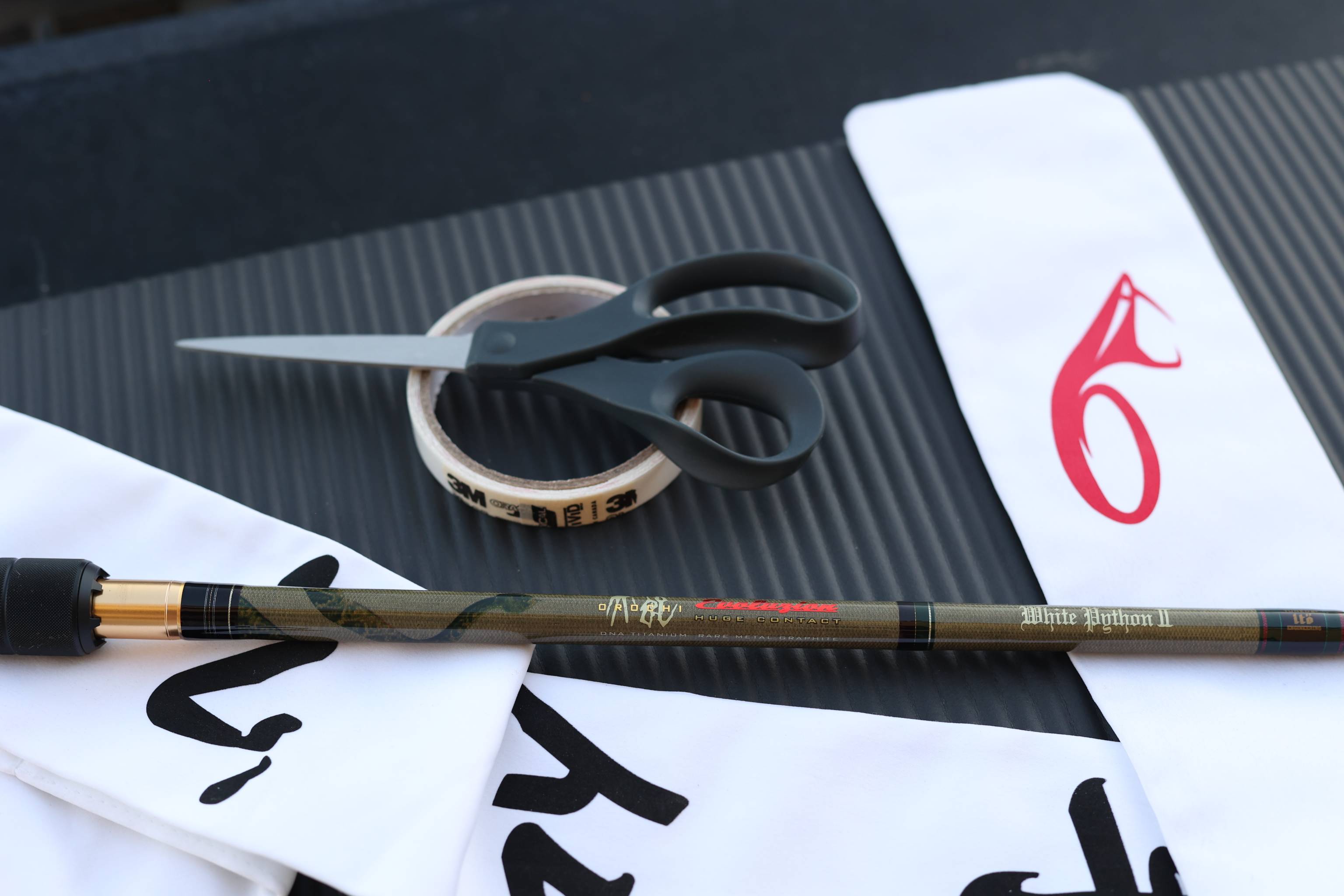

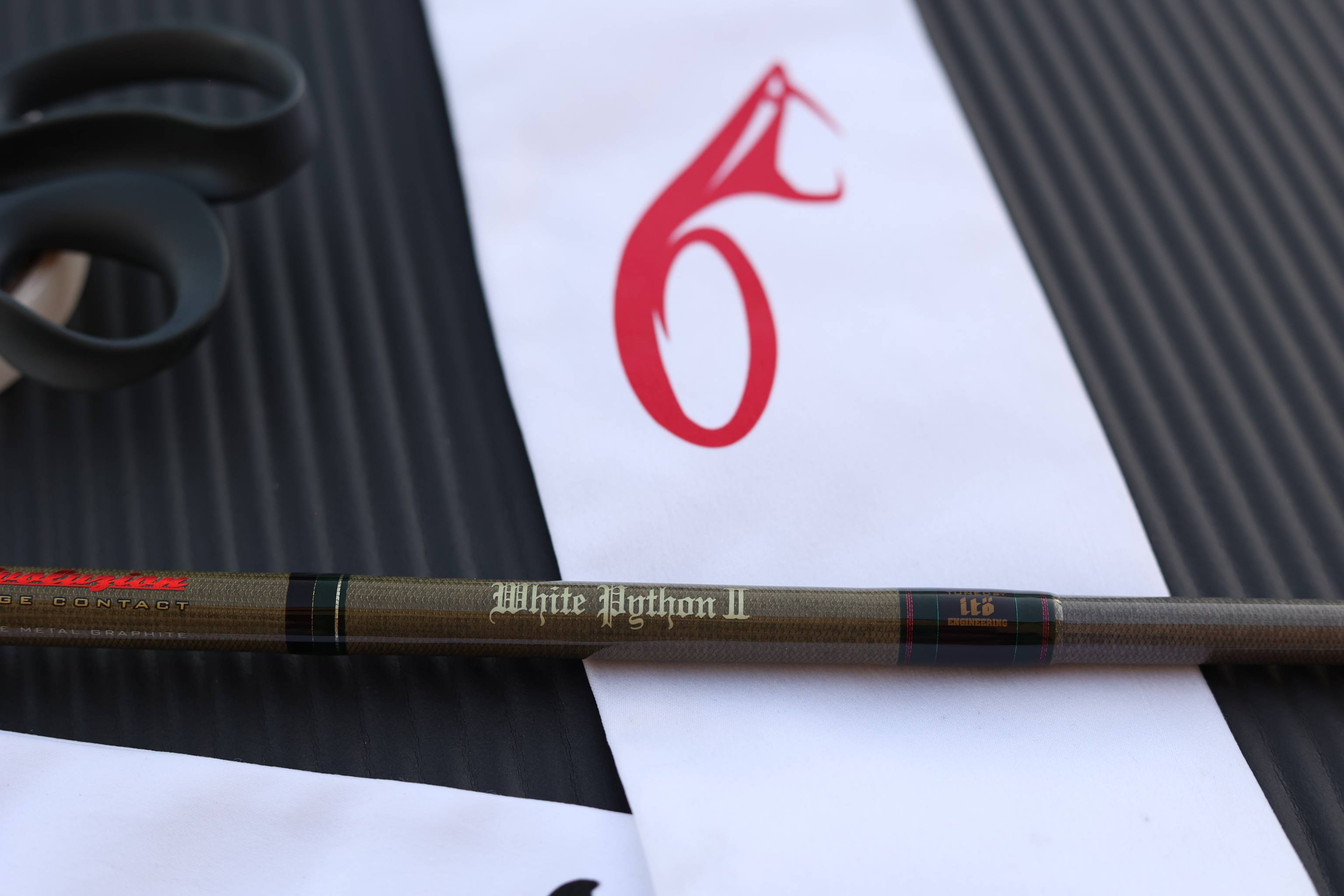

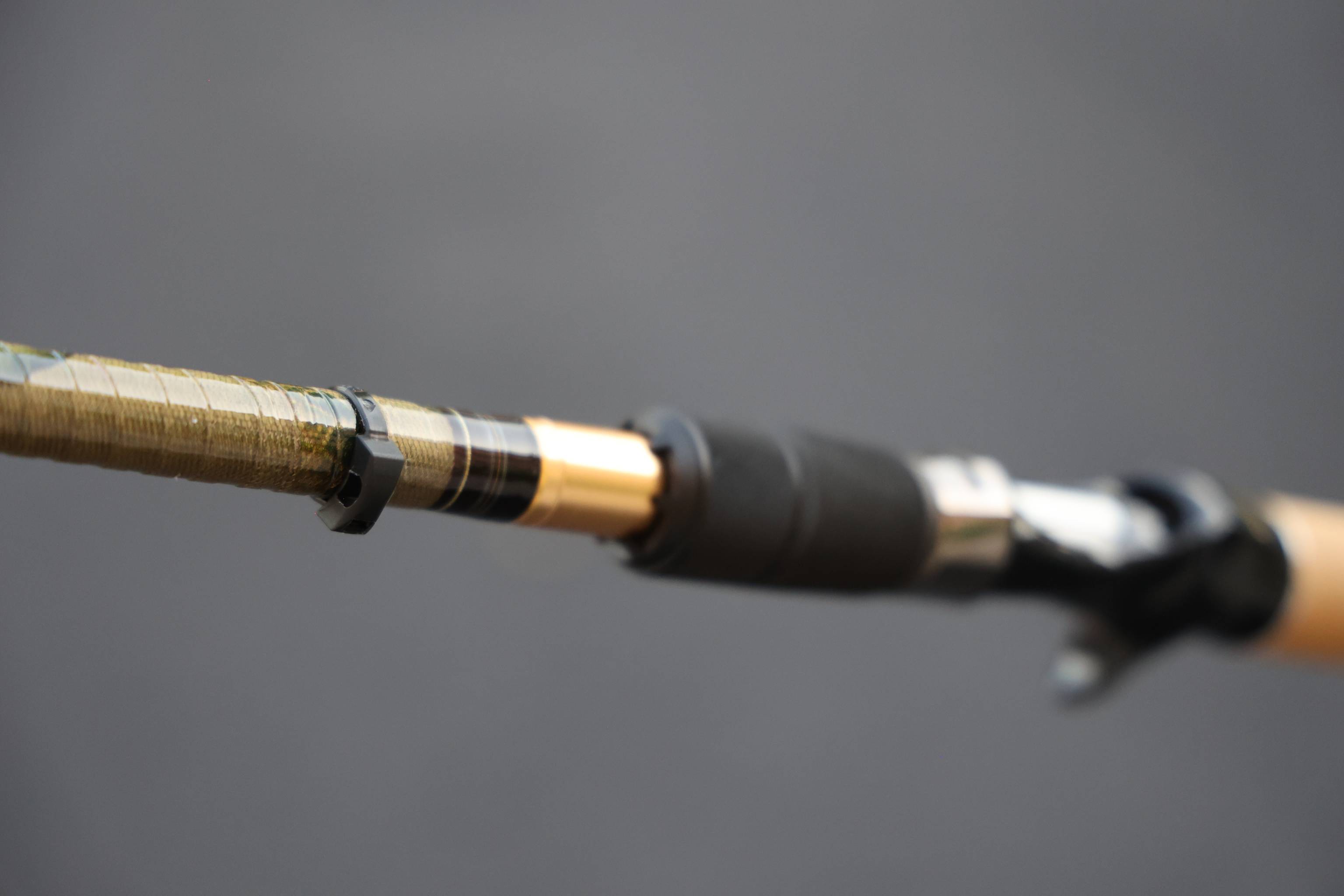

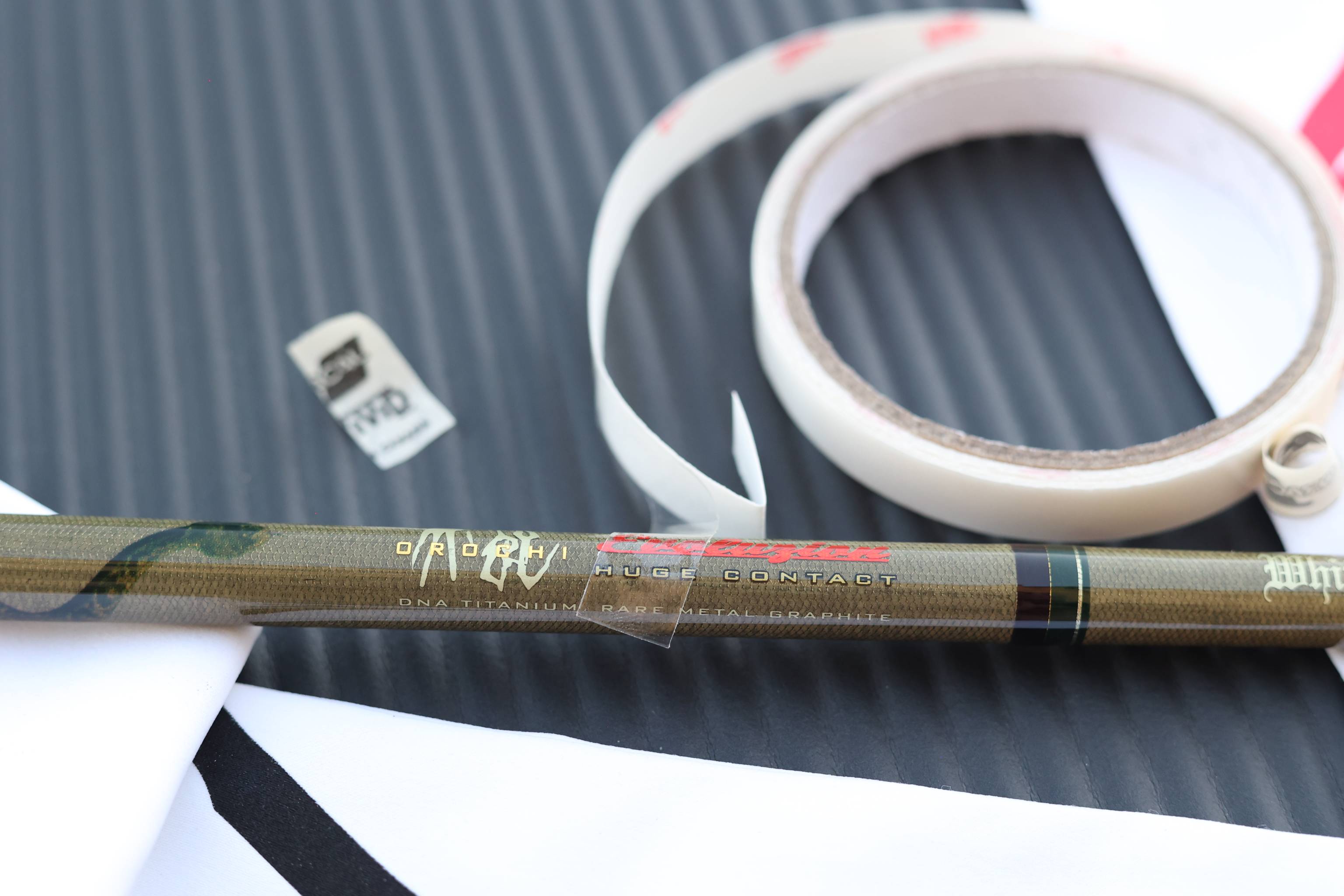

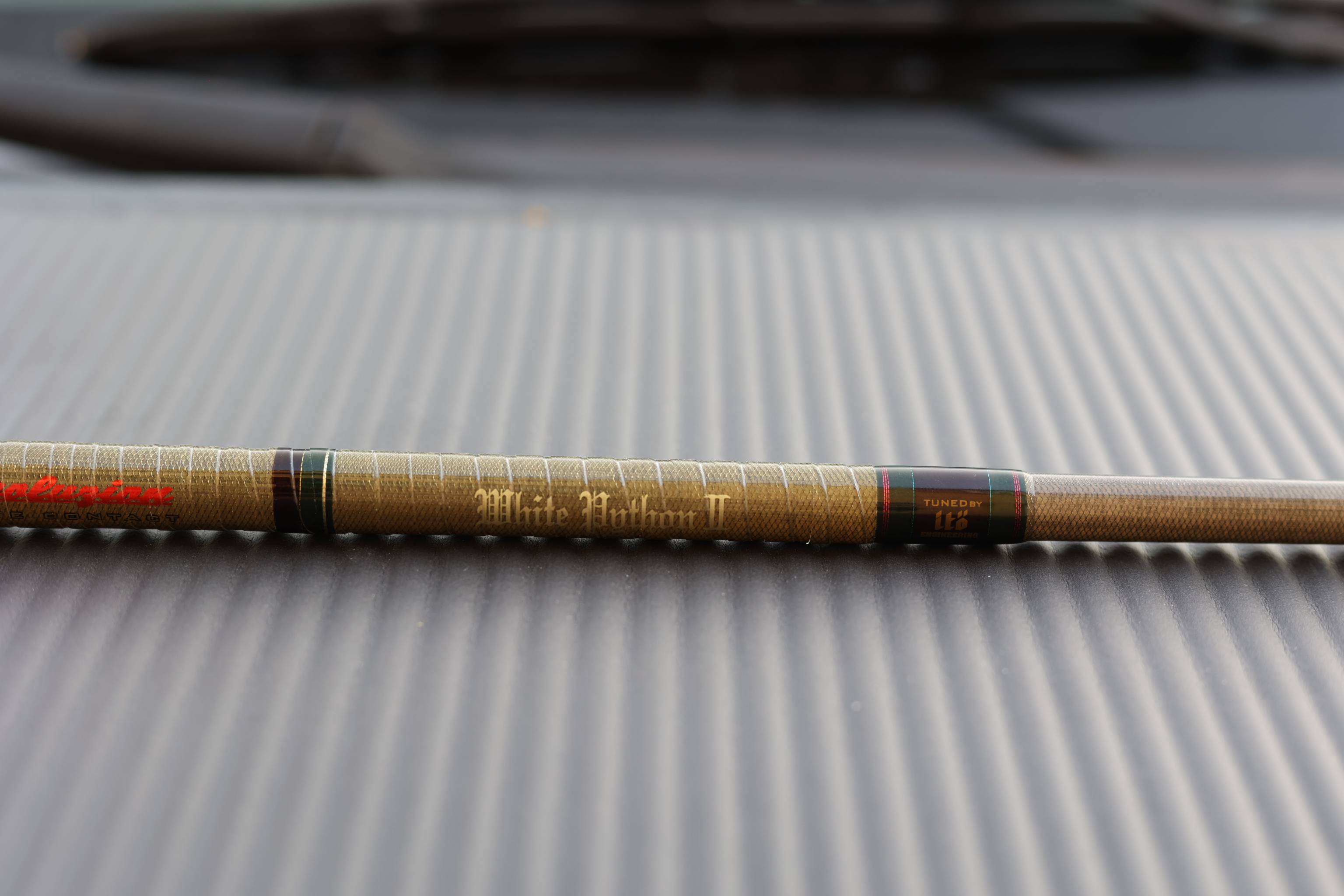

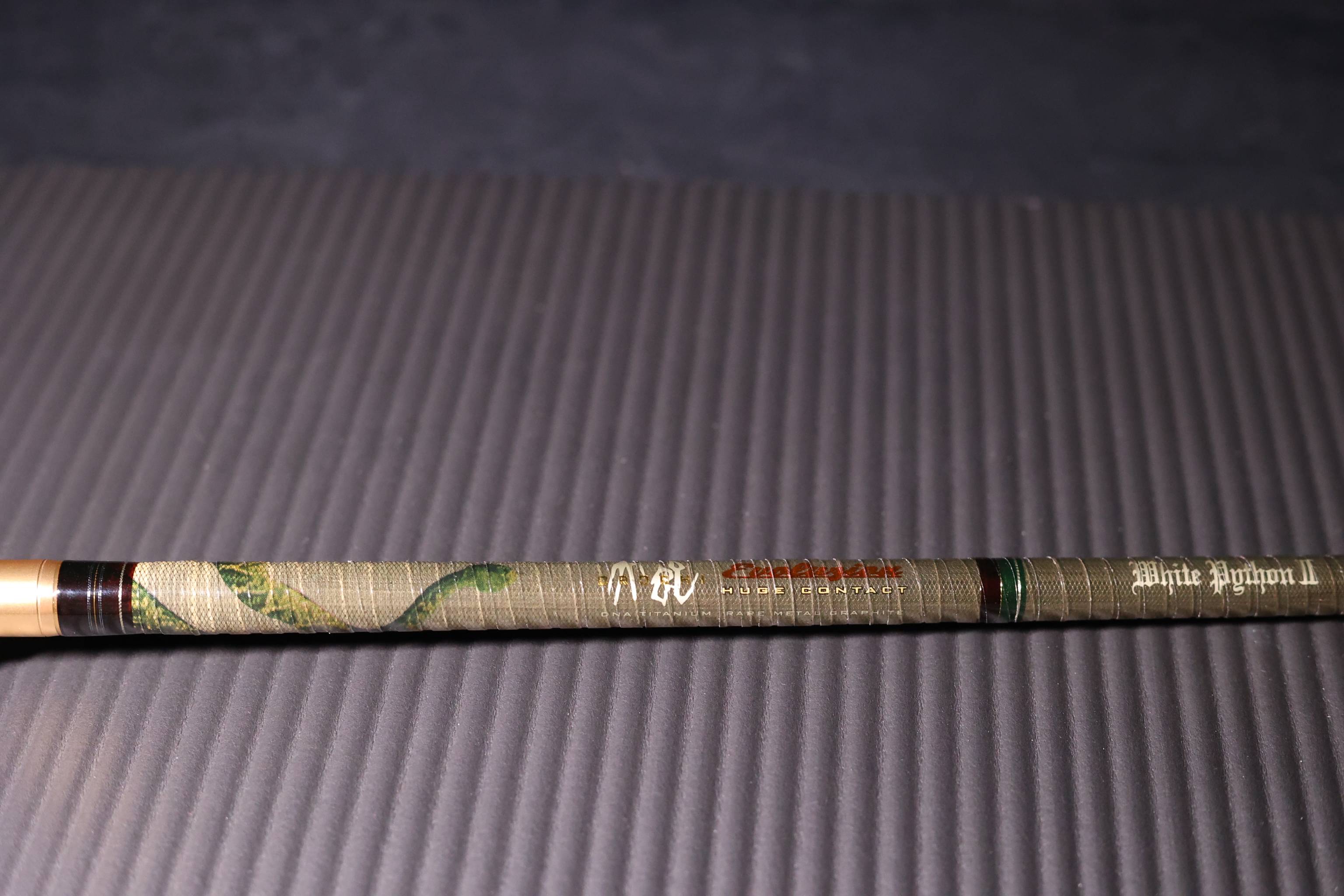

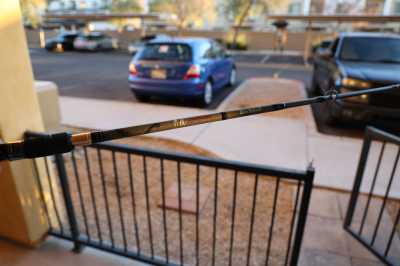

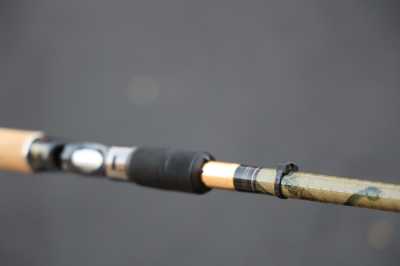

I went ahead and did this upgrade to my White Python II as well...

0W4A4650
0W4A4661
0W4A4663
0W4A4665
0W4A4666
0W4A4668
0W4A4681
0W4A5614
0W4A5615

Here are links to the 3M paint protection tape, I used 1/2":

3M Paint Protection Tape (Clear)

3M Paint Protection Tape (Carbon)

Note: wrap from the bottom up.

Any questions, please hit me up. I will post more photos as I do this to more rods...

design everything_



dragon1 and RISE reacted
ReplyQuote
RISE
 RISE
(@rise)
Teener Admin
Joined: 5 years ago
Posts: 1379


@triple_illusion brother!… BEAUTIFULLY DONE!

The only other thing I’ve considered was same clear wrap/clear bra material to do this with, but I like the ease of installation much better with this. I’ve been using the Fuji hook keepers for years, but I think you’ve converted me with this post. Salute! 👏🏻👏🏻👏🏻



ReplyQuote
dragon1
(@dragon1)
Double Digit
Joined: 4 years ago
Posts: 804


WOWZERS!  Absolute stellar and detailed work...OCD masterful!

Thanks for sharing, bro.



ReplyQuote
dragon1
(@dragon1)
Double Digit
Joined: 4 years ago
Posts: 804


Also, do you know how much weight this modification added?  It's likely very minimal.



ReplyQuote
triple_illusion
(@triple_illusion)
Slot Fish
Joined: 4 years ago
Posts: 139
Topic starter

@dragon1 I don't know; I can't imagine it being more than a few grams though. It is not noticeable in hand.

design everything_



ReplyQuote
triple_illusion
(@triple_illusion)
Slot Fish
Joined: 4 years ago
Posts: 139
Topic starter

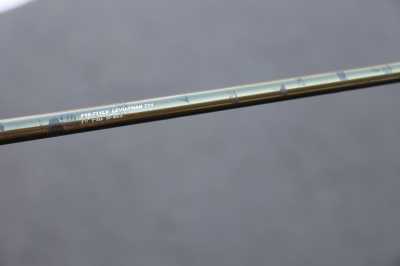

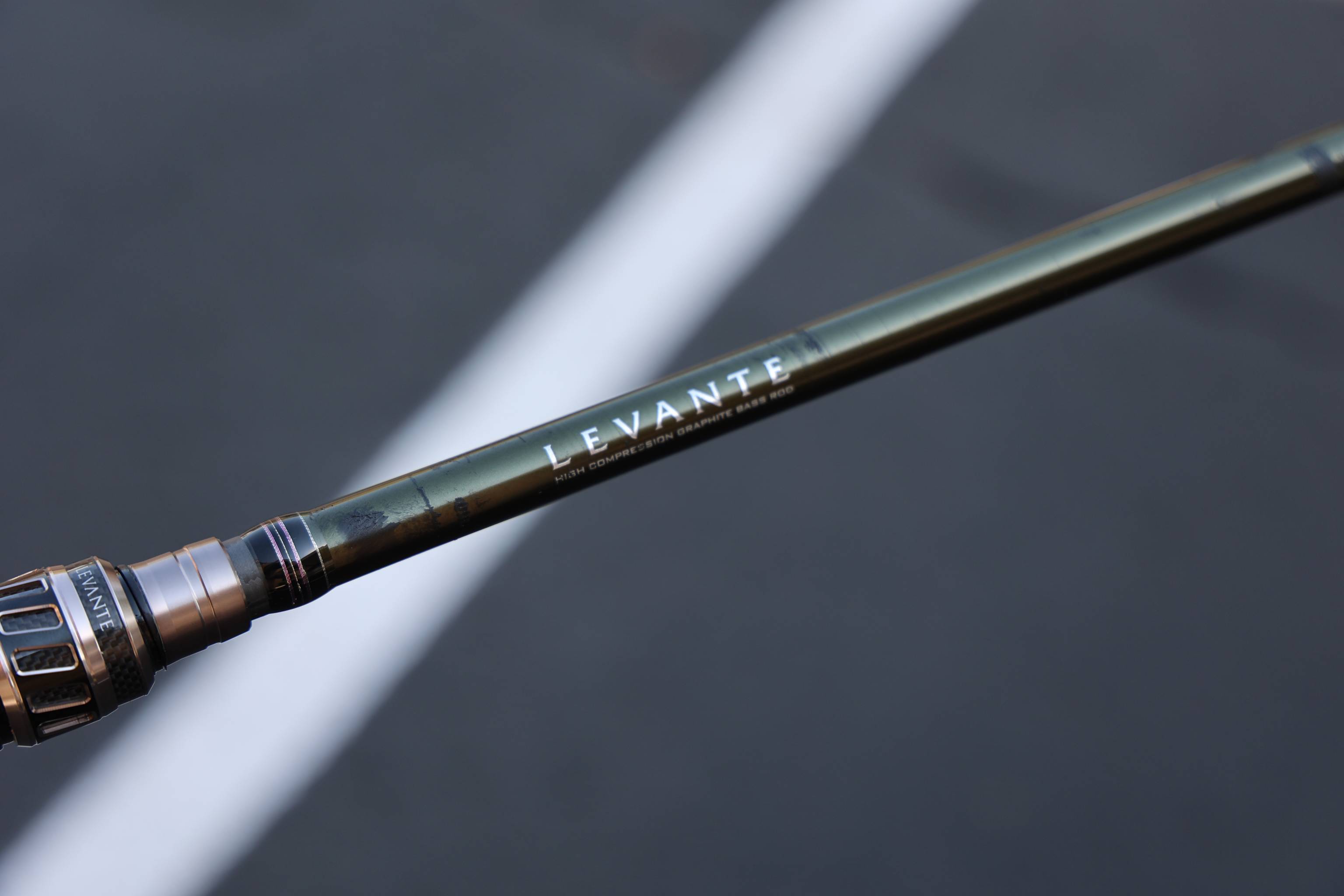

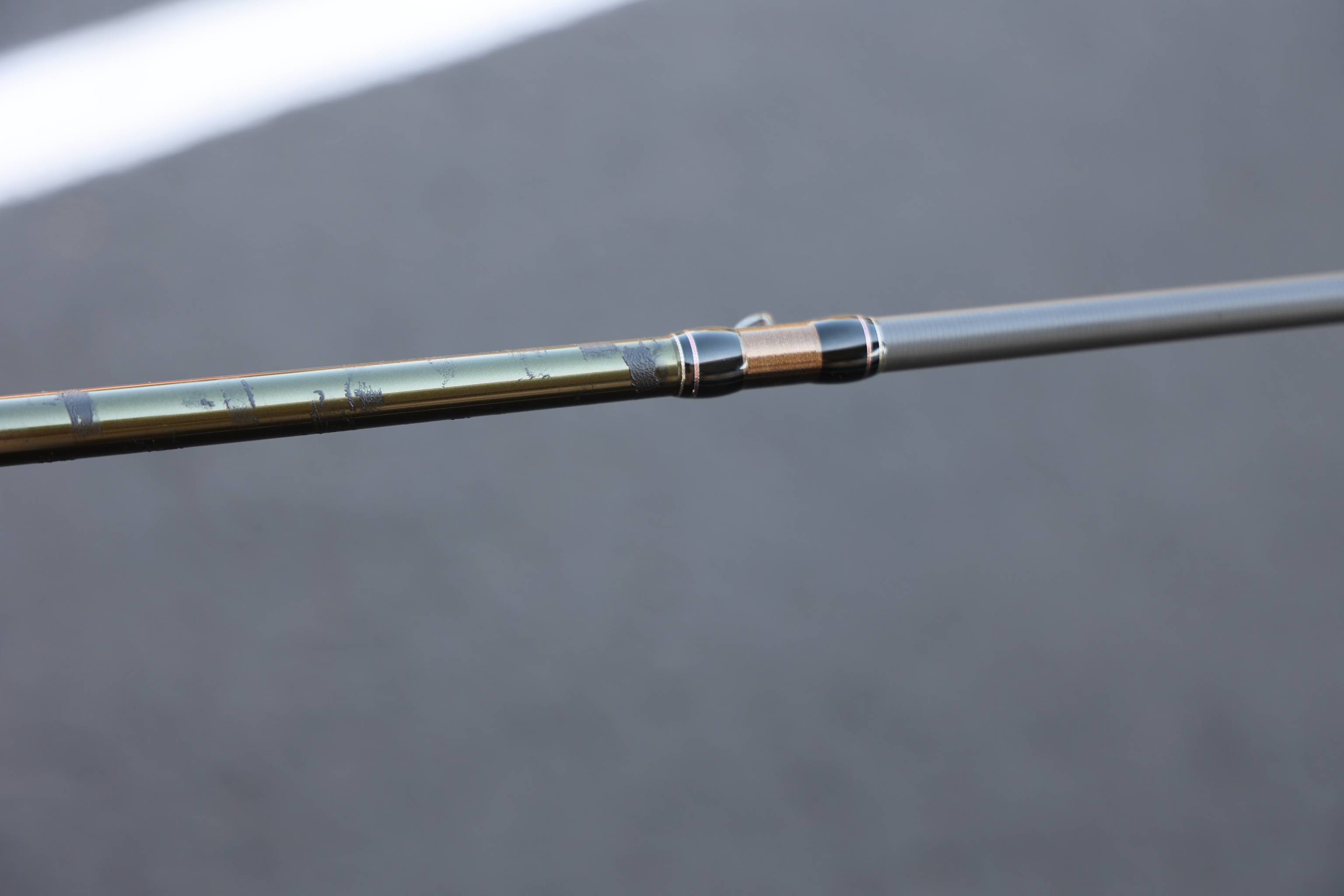

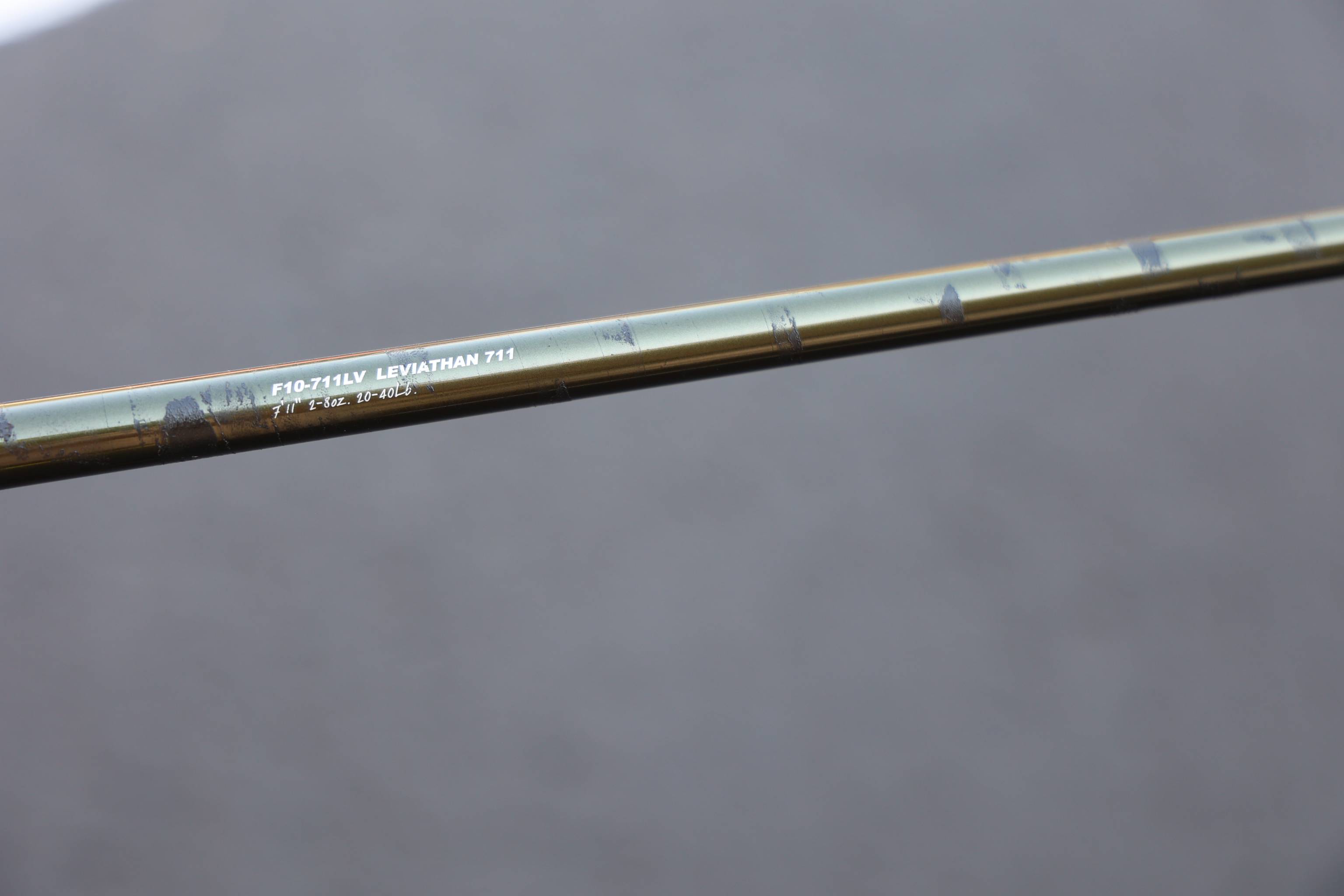

Electrical tape leaves a lot of adhesive, it took a lot of rubbing alcohol to remove it, but in time it came off...

0W4A5617
0W4A5618
0W4A5619

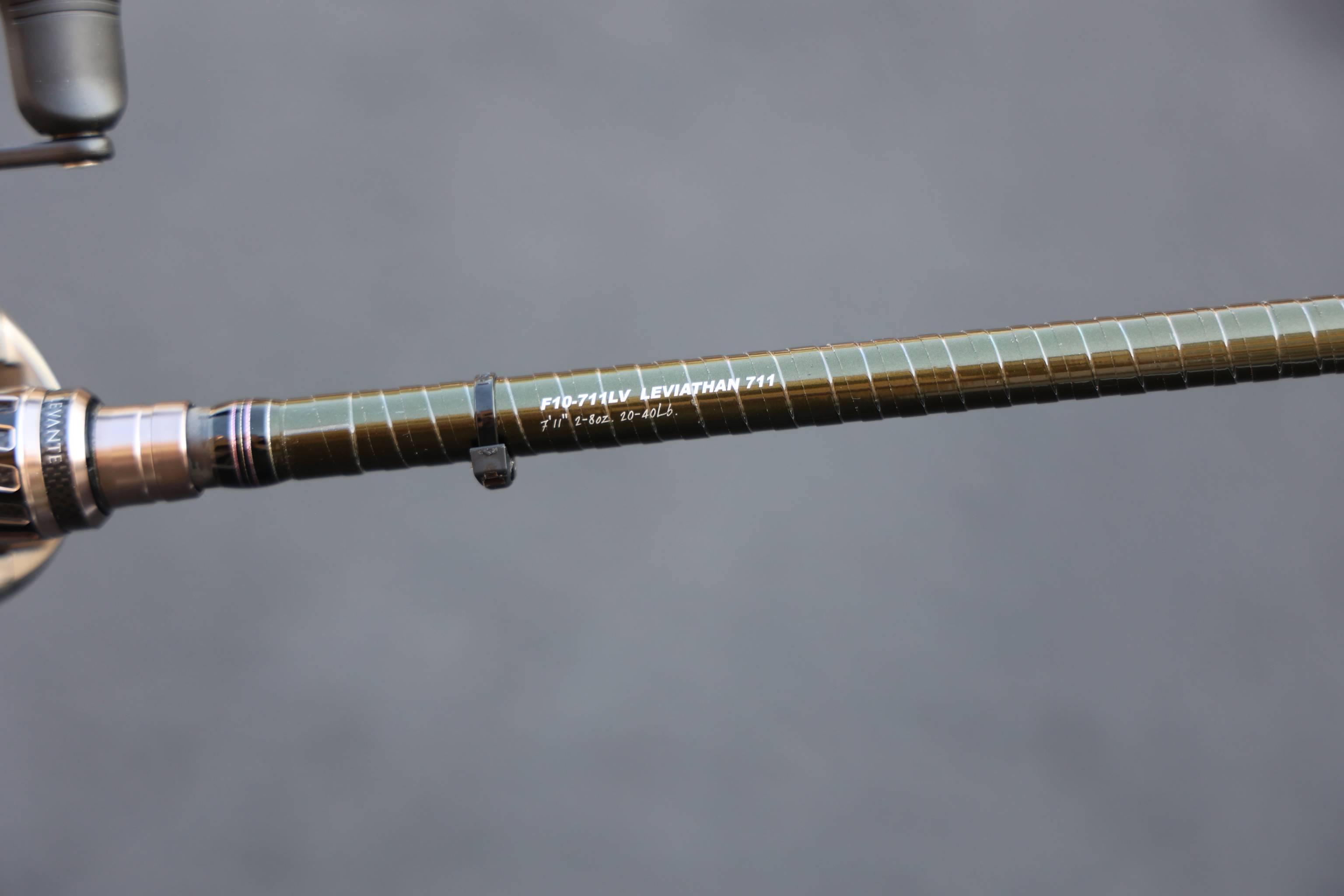

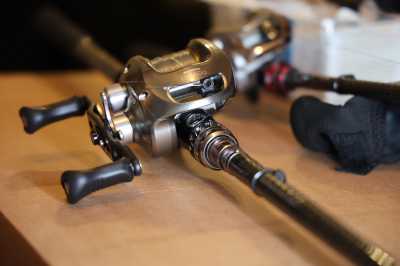

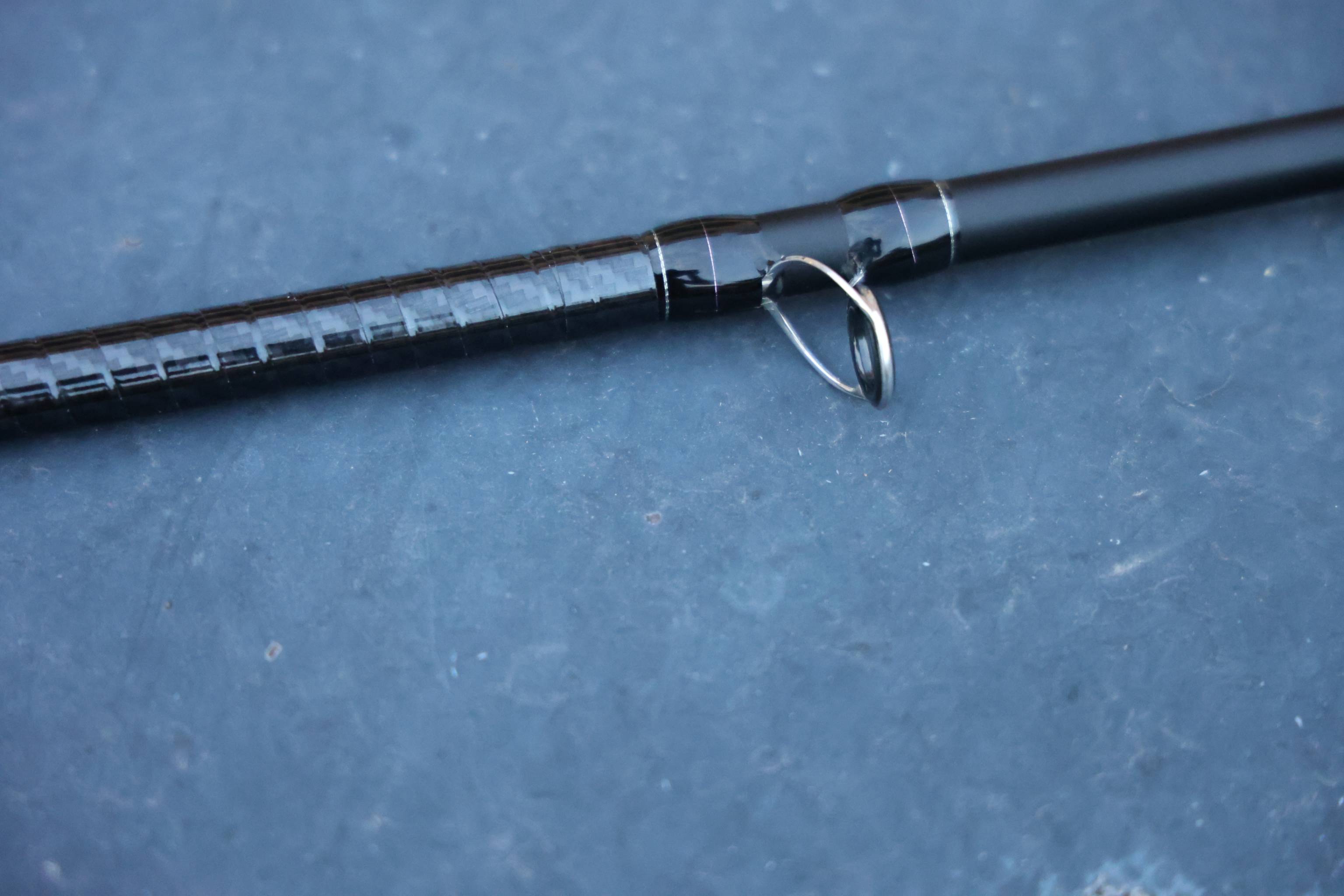

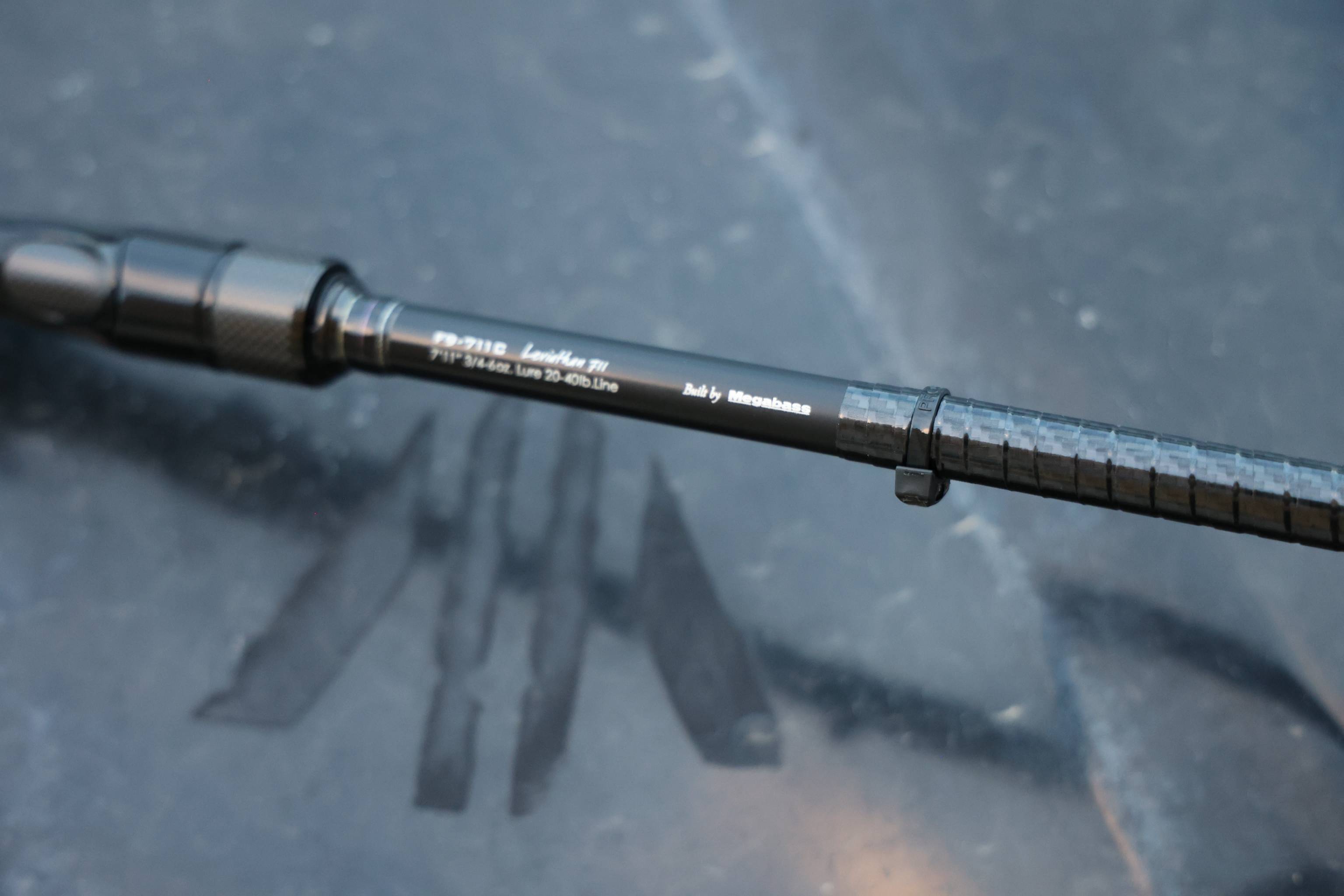

So I added clear paint protection tape to my Levante Leviathan as well...

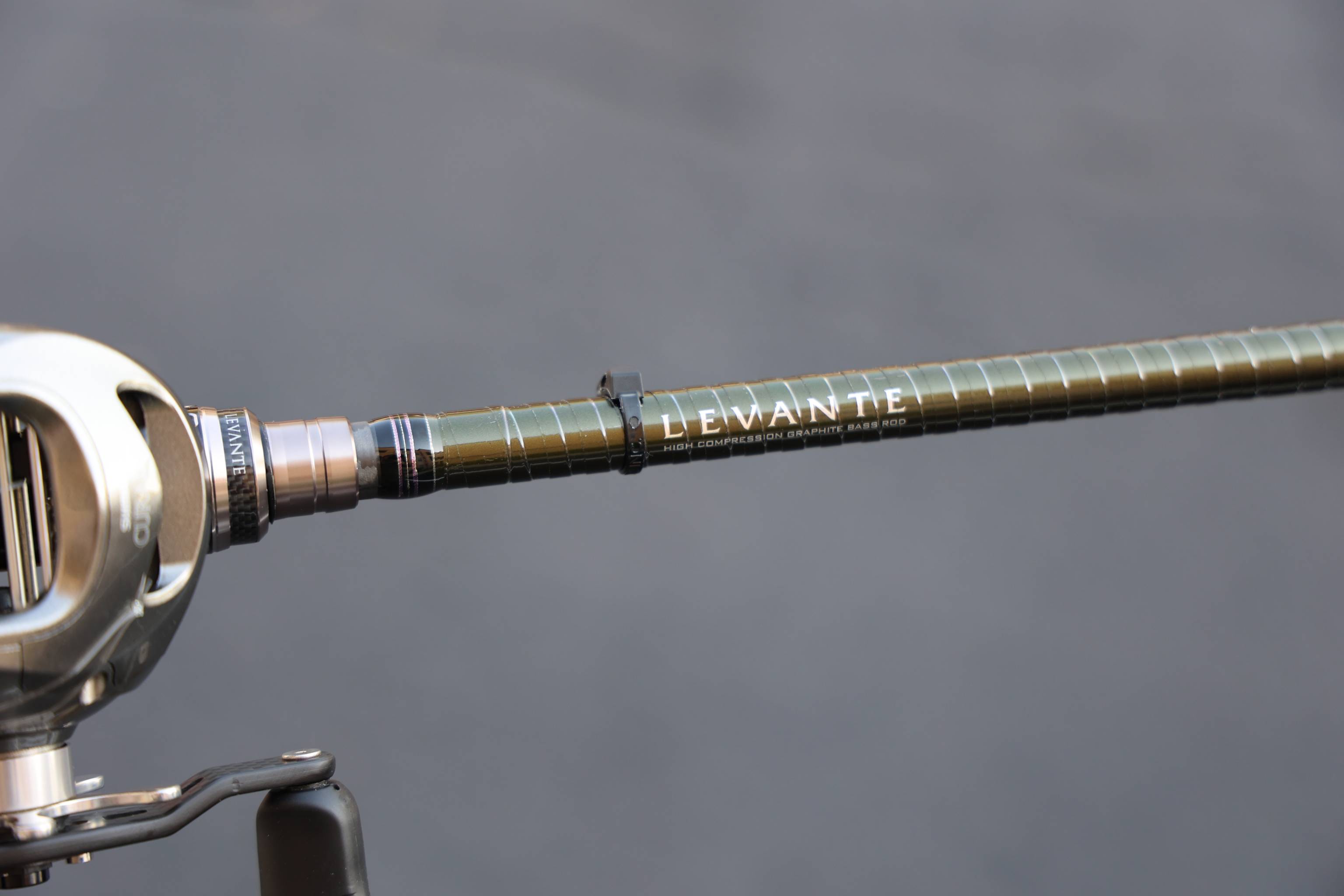

0W4A5622
0W4A5623

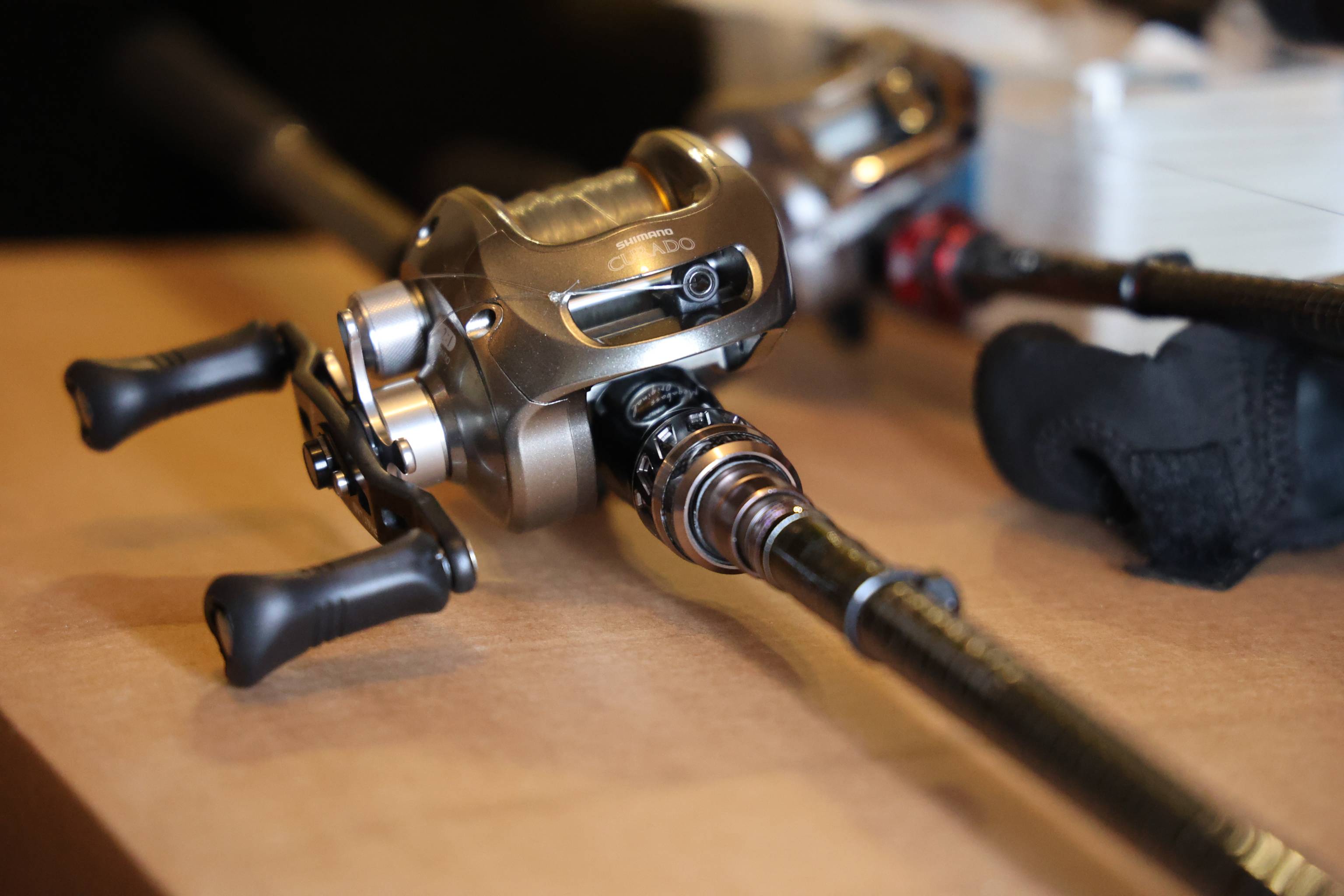

0W4A5626
